Satellite Radio Broadcast Cannot Be Selected Or After Selecting Broadcast, Broadcast Cannot Be Added Into Memory

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System for HDD): Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory
- Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory

INSEPCTION PROCEDURE

NOTICE:
* Some satellite radio broadcasts require payment. A contract must be made between a satellite radio company and the user. If the contract expires, the broadcast will not be able to be listened to or viewed.
* After replacing the radio receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, the XM Radio ID registration is necessary.
PROCEDURE

1. CHECK RADIO RECEIVER ASSEMBLY

(a) Check radio condition.

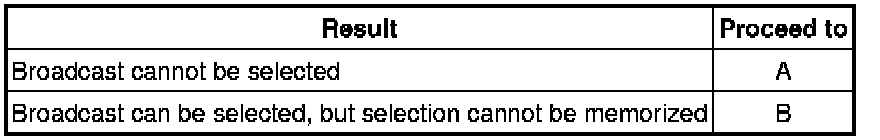

Result:





B -- CHECK RADIO RECEIVER ASSEMBLY

A -- ADD PRESET CHANNEL INTO MEMORY AGAIN

2. CHECK RADIO RECEIVER ASSEMBLY

(a) Check the number of preset channels.

OK:

18 channels have already been preset.

NG -- CHECK BATTERY

OK -- END (ONLY 18 CHANNELS CAN BE PRESET)

3. CHECK BATTERY

(a) Check if the battery was replaced.

OK:

Battery was not replaced.

NG -- ADD PRESET CHANNEL INTO MEMORY AGAIN

OK -- REPLACE RADIO RECEIVER ASSEMBLY Service and Repair

4. ADD PRESET CHANNEL INTO MEMORY AGAIN

(a) Check if the preset channels that have been cleared can be added into memory again.

OK:

Preset channels can be added into memory.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

OK -- END
