Radio Broadcast Cannot Be Received Or Poor Reception

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System for HDD): Radio Broadcast cannot be Received or Poor Reception
- Radio Broadcast cannot be Received or Poor Reception

INSEPCTION PROCEDURE

NOTICE:
After replacing the radio receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, registration of the XM radio ID is necessary.

PROCEDURE

1. CHECK RADIO RECEIVER ASSEMBLY

(a) Check the radio automatic station search function.

(1) Check the radio automatic station search function by activating it.

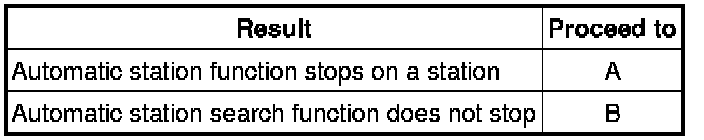

Result:





B -- CHECK OPTIONAL COMPONENTS

A -- REPLACE RADIO RECEIVER ASSEMBLY Service and Repair

2. CHECK OPTIONAL COMPONENTS

(a) Check optional components (sunshade film, telephone antenna, etc.).

(1) Check if any optional components that may decrease reception capacity, such as sunshade film or a telephone antenna, are installed.

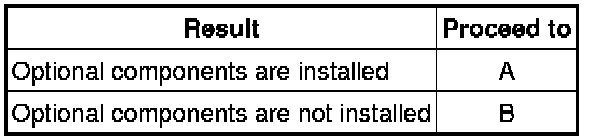

Result:





NOTICE:
Do not remove any optional components installed by the customer without his or her consent.

B -- CHECK RADIO RECEIVER ASSEMBLY

A -- REMOVE OPTIONAL COMPONENTS AND CHECK AGAIN (SEE NOTICE ABOVE)

3. CHECK RADIO RECEIVER ASSEMBLY

(a) Preparation for check





(1) Remove the antenna plug from the radio receiver assembly.

(b) Check for noise

(1) Turn the ignition switch to ACC with the radio receiver assembly connector connected.

(2) Turn the radio on and tune into AM mode.

(3) Place a screwdriver, thin wire or other metal object on the radio receiver antenna jack and check that noise can be heard from the speaker.

OK:

Noise can be heard from the speaker.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Service and Repair
OK -- Continue to next step.

4. CHECK GLASS ANTENNA

(a) Check for continuity of the antenna.





HINT

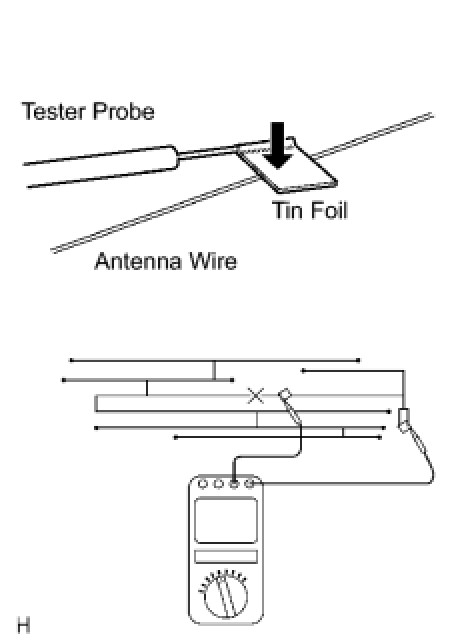

Check for continuity at the center of each antenna wire as shown in the illustration.

NOTICE:
When cleaning the glass, wipe it in the direction of the wire with a soft dry cloth. Take care not to damage the wire. Do not use detergents or glass cleaners with abrasive ingredients. When measuring resistance, wrap a piece of tin foil around the tip of each probe and press the foil against the wire with your finger, as shown in the illustration.

OK:

There is continuity in the antenna.

NG -- REPAIR GLASS ANTENNA
OK -- Continue to next step.

5. INSPECT RADIO RECEIVER ASSEMBLY

(a) Disconnect the radio receiver assembly connector.

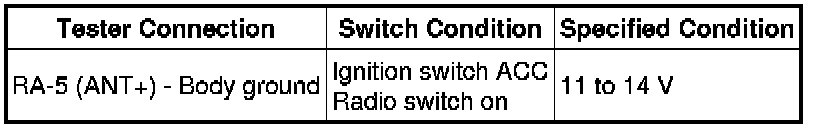

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





NG -- REPLACE RADIO RECEIVER ASSEMBLY Service and Repair
OK -- Continue to next step.

6. CHECK ANTENNA CORD

(a) Remove the antenna plug of the radio receiver assembly and antenna.

(b) Measure the resistance between the antenna and radio receiver assembly to check for an open circuit in the antenna cord.

Standard Resistance:

Below 1 Ohms

(c) Measure the resistance between the antenna cord and body ground to check for a short circuit in the antenna cord.

Standard Resistance:

10 kOhms or higher

NG -- REPLACE ANTENNA CORD
OK -- Continue to next step.

7. REPLACE RADIO ANTENNA HOLDER

(a) Replace the radio antenna holder and check if radio broadcasts can be received normally Removal and Replacement.

OK:

Radio broadcasts can be received.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Service and Repair

OK -- END
