Audio and Visual System (W/ Navigation System for HDD)





AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System for HDD): TERMINALS OF ECU

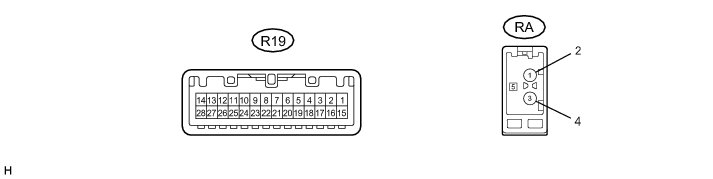

1. RADIO RECEIVER ASSEMBLY

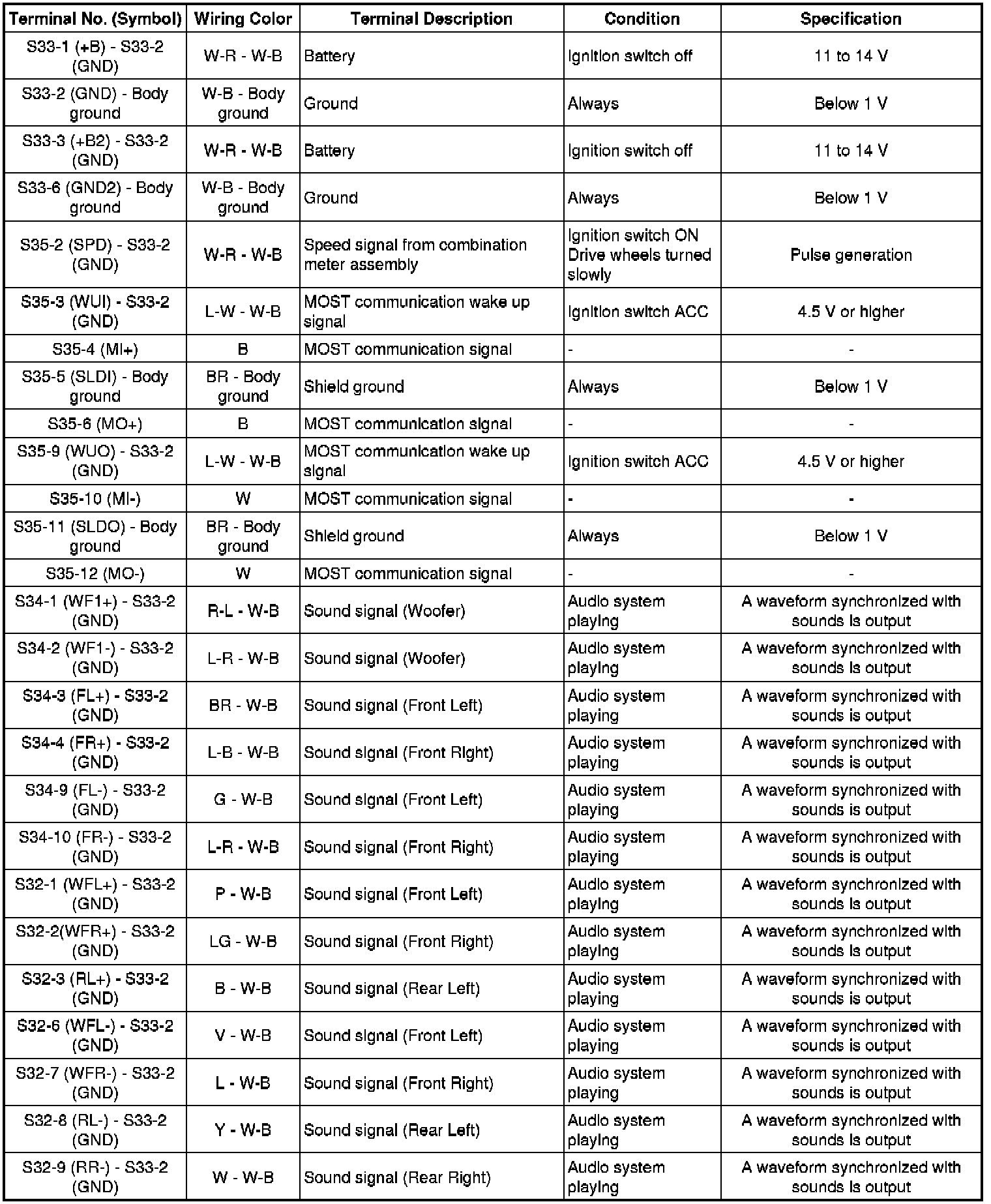

2. STEREO COMPONENT AMPLIFIER ASSEMBLY

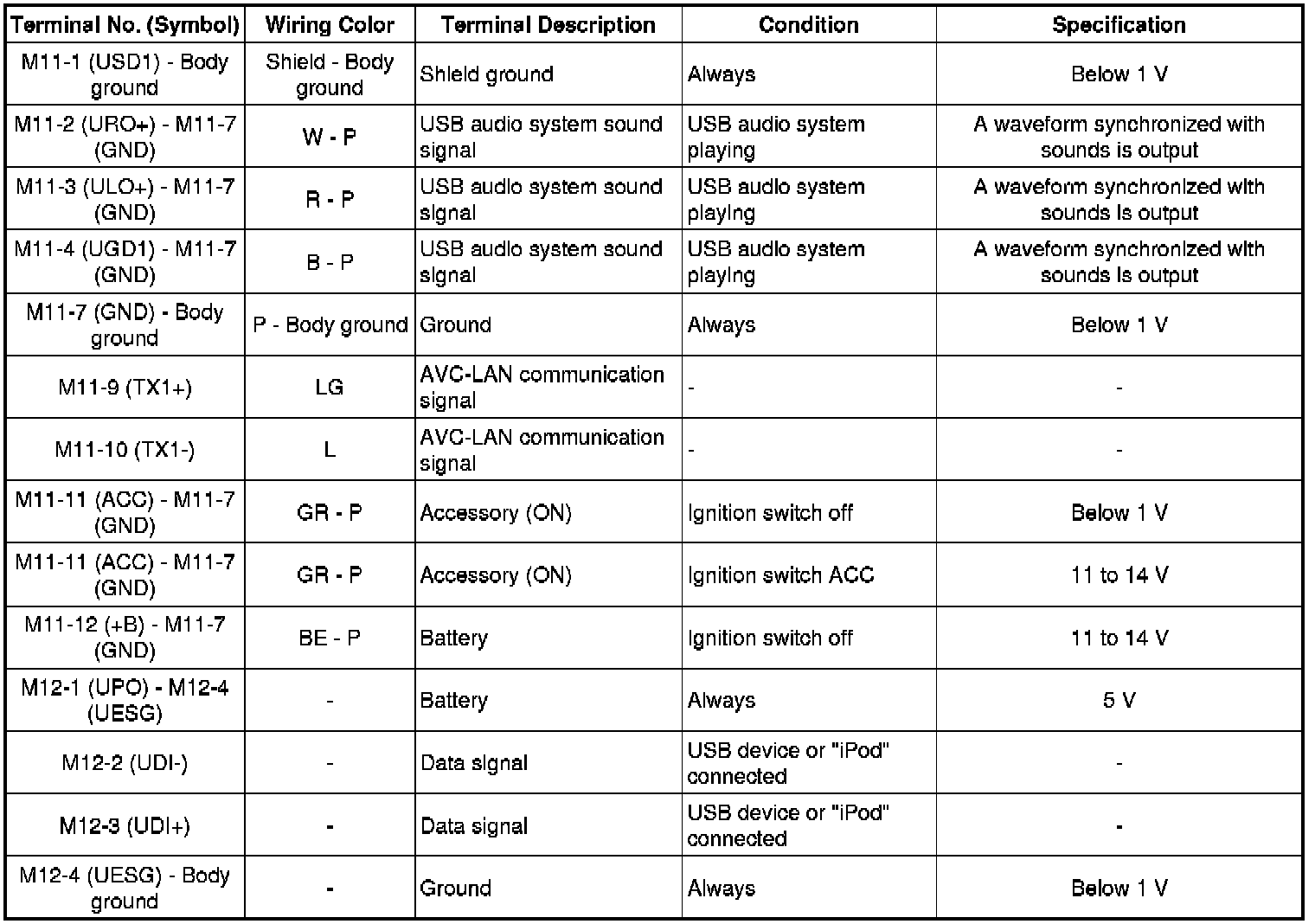

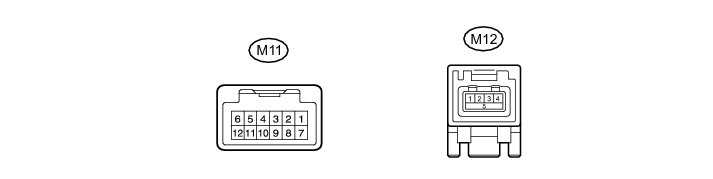

3. MULTI-MEDIA INTERFACE ECU
