Audio and Visual System (w/ Navigation System for HDD)

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System for HDD): HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedure to troubleshoot the audio and visual system.
* *: Use the Techstream.
1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard Voltage:

11 to 14 V

* If the voltage is below 11 V, recharge or replace the battery before proceeding to the next step.

NEXT -- Continue to next step.

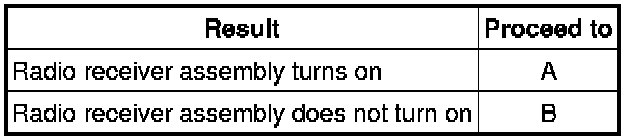

3. BASIC INSPECTION

(a) Turn the ignition switch to ON.

(b) Check whether or not the radio receiver assembly turns on.

Result:





B -- Go to step 8
A -- Continue to next step.

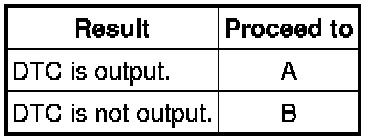

4. CHECK FOR DTC*

(a) Refer to DTC Check/Clear of the navigation system Navigation System (for HDD).

Result:





HINT
After the check using the Techstream, check the "System Check Mode" screen as necessary.

B -- Go to step 8
A -- Continue to next step.

5. DTC CLEAR*

(a) Refer to DTC Check/Clear of the navigation system Navigation System (for HDD).

HINT
The current DTCs may not indicate actual malfunctions depending on the vehicle operating conditions.

NEXT -- Continue to next step.

6. RECHECK FOR DTC*

(a) Refer to DTC Check/Clear of the navigation system Navigation System (for HDD).

Result:





HINT
* Even if the malfunction symptom is not confirmed, check for diagnostic trouble codes. This is because the system stores past diagnostic trouble codes.
* After the check using the Techstream, check the "System Check Mode" screen as necessary.
* Check the diagnostic trouble code and inspect the area code indicates.
B -- Go to step 9
A -- Continue to next step.

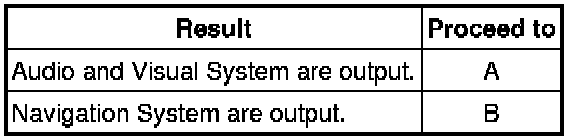

7. DIAGNOSTIC TROUBLE CODE CHART

(a) Find the output code in Diagnostic Trouble Code Chart Audio and Visual System (w/ Navigation System for HDD).

NOTICE:
* The navigation system outputs DTCs for the following systems.
* When DTCs other than the codes in Diagnostic Trouble Code Chart for the audio and visual system are output, refer to Diagnostic Trouble Code Chart for the following system.
* Refer to Navigation System Navigation System (for HDD).

Result:





A -- Go to step 10

B -- GO TO NAVIGATION SYSTEM

8. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table.

Result:





HINT
If the symptom does not recur and no DTC is output, perform the symptom reproduction method How To Proceed With Troubleshooting.

B -- Go to step 10
A -- Continue to next step.

9. CHECK ECU TERMINAL ARRANGEMENT BASED ON MALFUNCTION SYMPTOM

(a) Refer to Terminals of ECU Audio and Visual System (W/ Navigation System for HDD).

NEXT -- Continue to next step.

10. CHECK CIRCUIT

(a) Adjust, repair or replace as necessary.

NEXT -- Continue to next step.

11. RECHECK FOR DIAGNOSTIC TROUBLE CODE

HINT
After clearing DTCs, recheck for DTCs.

NEXT -- Continue to next step.

12. PERFORM CONFIRMATION TEST

NEXT -- END
