Steering Pad Switch Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System): Steering Pad Switch Circuit
- Steering Pad Switch Circuit

INSEPCTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (STEERING PAD SWITCH MODULATOR)

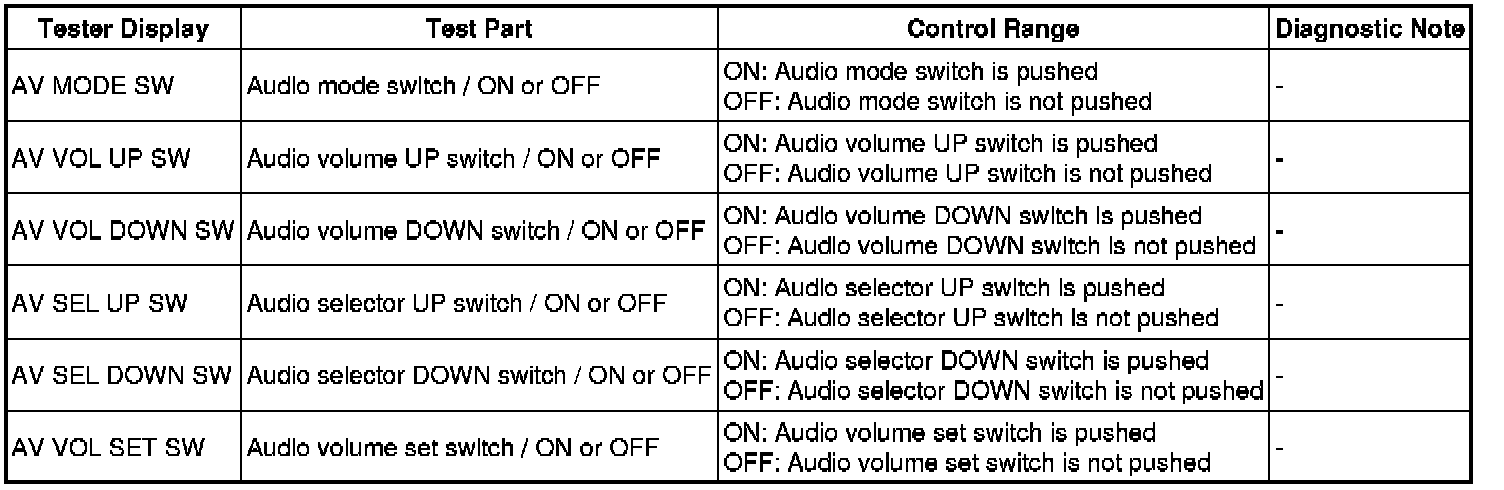

(a) Check the DATA LIST for proper functioning of the steering pad switch.

Steering pad switch modulator:





OK:

ON appears on the screen when each steering pad switch is pushed.

NG -- REPLACE STEERING PAD SWITCH MODULATOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
