Stereo Component Amplifier Power Source Circuit

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System for HDD): Stereo Component Amplifier Power Source Circuit
- Stereo Component Amplifier Power Source Circuit

DESCRIPTION

This circuit provides power to the stereo component amplifier assembly.

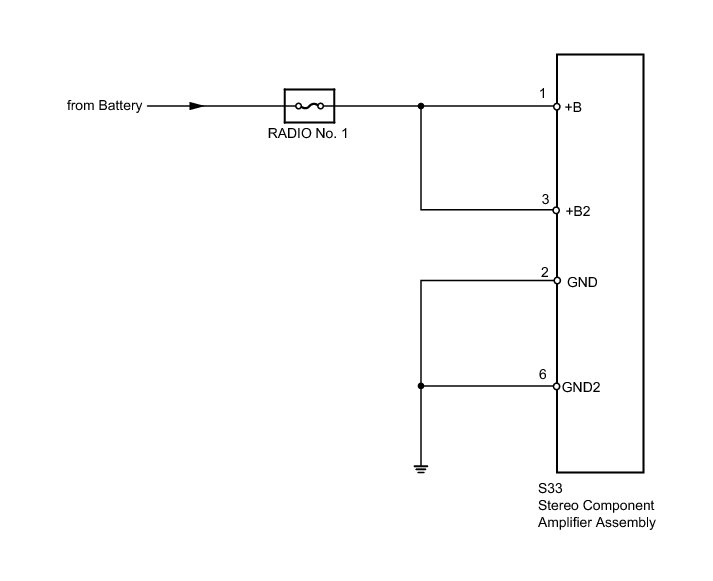

WIRING DIAGRAM





INSEPCTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY

(a) Disconnect the stereo component amplifier assembly connector.





(b) Measure the resistance according to the value(s) in the table below.

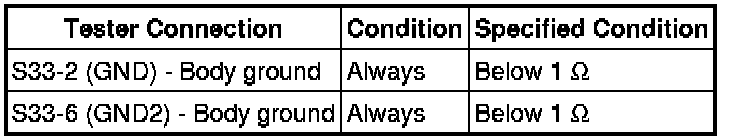

Standard Resistance:





(c) Measure the voltage according to the value(s) in the table below.

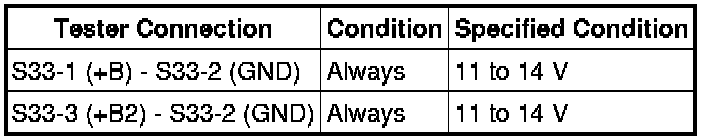

Standard Voltage:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
