Sound Signal Circuit Between Multi-Media Interface ECU and Stereo Jack Adapter

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System for HDD): Sound Signal Circuit between Multi-media Interface ECU and Stereo Jack Adapter
- Sound Signal Circuit between Multi-media Interface ECU and Stereo Jack Adapter

DESCRIPTION

The No. 1 stereo jack adapter assembly sends the sound data signal of an external device to the multi-media interface ECU through this circuit.

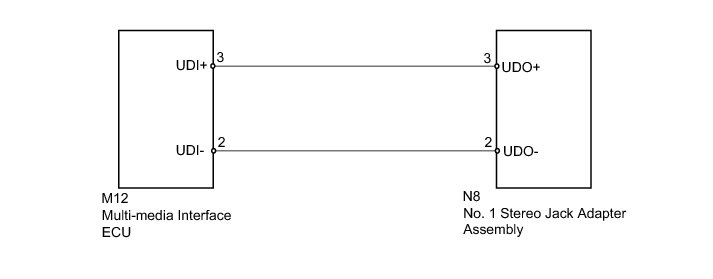

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (NO. 1 STEREO JACK ADAPTER - MULTI-MEDIA INTERFACE ECU)

(a) Disconnect the multi-media interface ECU connector.

(b) Disconnect the No. 1 stereo jack adapter assembly connector.

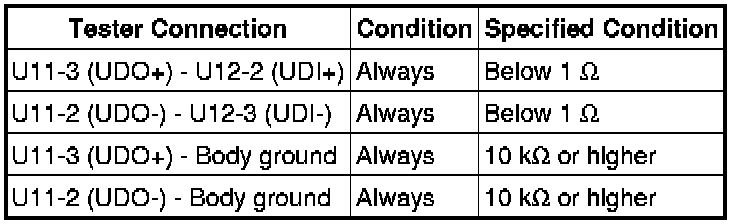

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
