Installation

AUDIO / VISUAL: FRONT DOOR SPEAKER: INSTALLATION

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

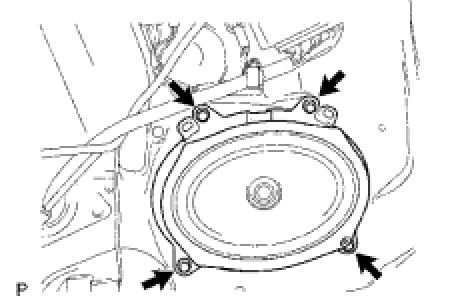

1. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY LH

(a) Install the speaker with the 4 screws.





(b) Connect the connector.

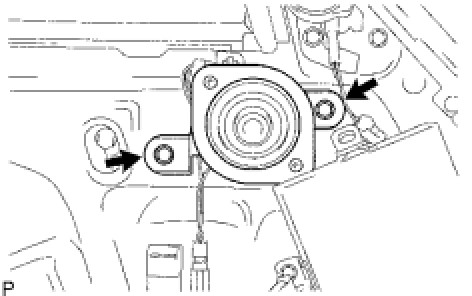

2. INSTALL FRONT NO.2 SPEAKER ASSEMBLY

(a) Install the speaker with the 2 screws.





(b) Connect the 2 connectors.

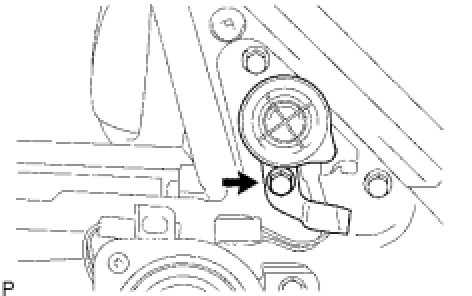

3. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

(a) Install the speaker with the bolt.





(b) Connect the connector.

4. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

5. INSTALL FRONT DOOR WINDOW UPPER BRACKET GARNISH LH Reassembly

6. INSTALL NO. 2 DOOR INSIDE HANDLE BEZEL LH Reassembly

7. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Reassembly

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

9. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
