Installation

AUDIO / VISUAL: RADIO RECEIVER: INSTALLATION

1. INSTALL RADIO RECEIVER ASSEMBLY

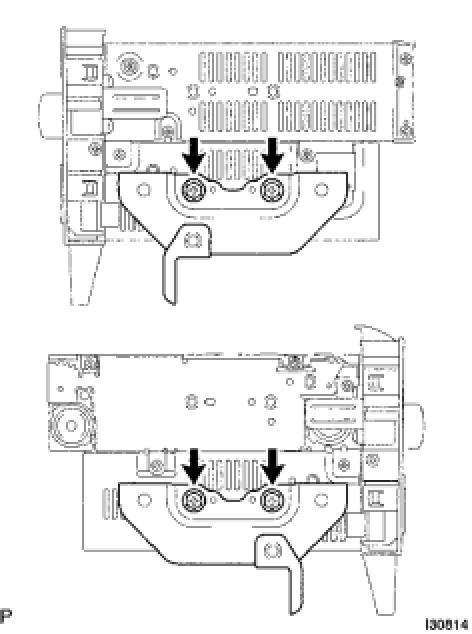

(a) Install the No. 1 bracket with the 2 screws.

(b) Install the No. 2 bracket with the 2 screws.

(c) Attach the 2 claws to install the panel.

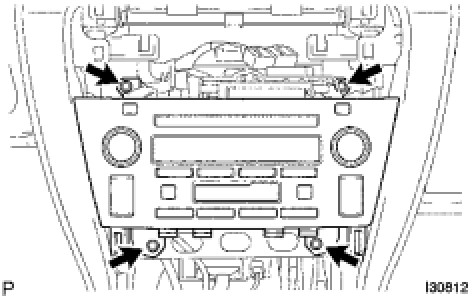

(d) Install the 4 bolts.

(e) Install the 3 panel retainers with the 4 screws.

2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER





(a) Connect the connector.

(b) Install the panel with the 4 bolts.

NOTICE:
* If the connector is connected with the battery connected, the system will start initialization.
* Vibration during initialization may cause problems in the radio receiver.
3. INSTALL AIR CONDITIONING CONTROL ASSEMBLY Installation

4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY Installation

5. INSTALL REAR CONSOLE UPPER PANEL GARNISH Installation

6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

7. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT Installation
