Map Disc Read Error

NAVIGATION: NAVIGATION SYSTEM (for DVD): Map Disc Read Error
- Map Disc Read Error

INSEPCTION PROCEDURE

PROCEDURE

1. CHECK MAP DISC

(a) Check for dirt on the map disc surface.





OK:

No dirt is on map disc surface.

HINT

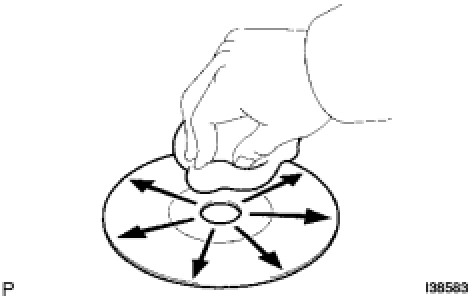

If the disc is dirty, clean the disc by wiping the disc's surface radially with a soft cloth.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

NG -- CLEAN MAP DISC
OK -- Continue to next step.

2. CHECK MAP DISC

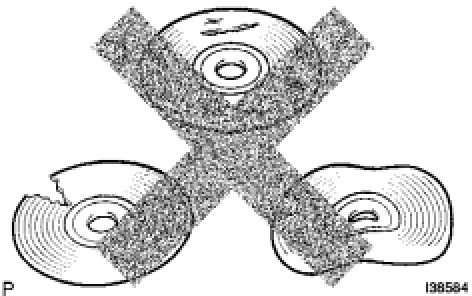

(a) Check that the map disc is not deformed or cracked.





OK:

No deformations or cracks on map disc.

NG -- REPLACE MAP DISC

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART
