GYRO Error

NAVIGATION: NAVIGATION SYSTEM (for DVD): GYRO Error
- GYRO Error

INSEPCTION PROCEDURE

PROCEDURE

1. CHECK VEHICLE SENSOR (NAVIGATION CHECK MODE)

(a) Enter the Navigation Check mode's Vehicle Sensors check Navigation Check Mode.

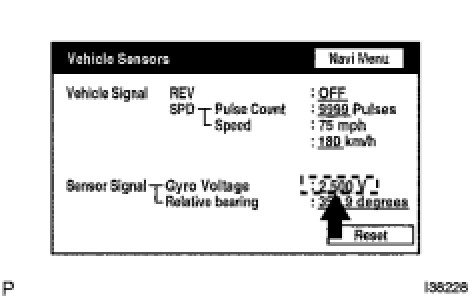

(b) Check the gyro voltage.

Standard voltage:

0.1 to 4.5 V

NG -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN DIAGNOSTIC TROUBLE CODE CHART

OK -- REPLACE NAVIGATION ECU
