GPS Mark is not Displayed

NAVIGATION: NAVIGATION SYSTEM (for DVD): GPS Mark is not Displayed
- GPS Mark is not Displayed

INSEPCTION PROCEDURE

PROCEDURE

1. CHECK CABIN

(a) Check the cabin for any object that might interrupt radio reception on the instrument panel. If such an object exists, remove it and check if the GPS mark reappears.

HINT
The GPS works uses extremely faint radio waves originating from satellites. If the signal is interrupted by obstructions or another radio wave, the GPS may not be able to properly receive the signal.

OK:

Mark appears.

OK -- NORMAL OPERATION
NG -- Continue to next step.

2. CHECK SURROUNDINGS

(a) Check that the vehicle is in a location where GPS signal reception is poor. If the vehicle is in such a place, relocate vehicle and check if the GPS mark reappears.

HINT

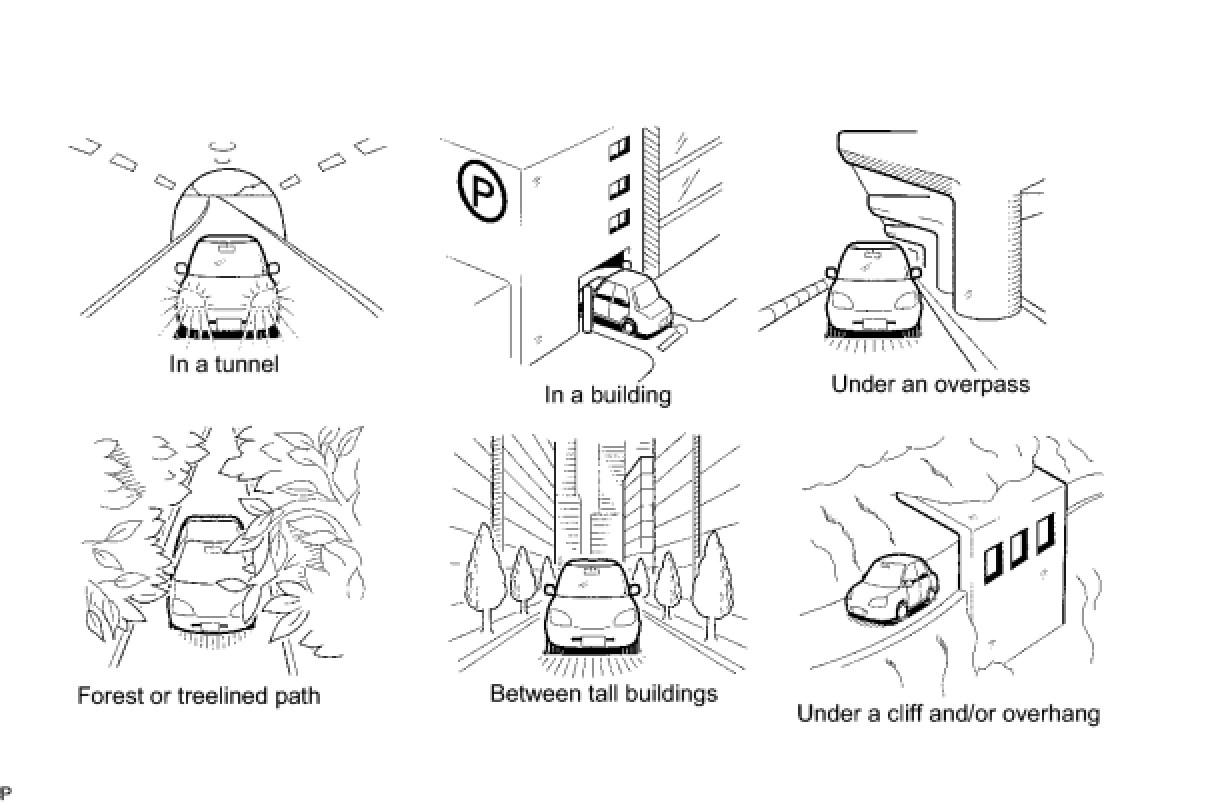

The GPS uses 24 satellites in 6 orbits. At any point in time, 5 satellites should be able to pinpoint your vehicle. However, GPS signals may not reach the vehicle due to influence from the surroundings, vehicle direction and time. For illustrated examples, see below.





OK:

GPS mark is displayed.

OK -- RETURNS TO NORMAL
NG -- Continue to next step.

3. CHECK GPS INFORMATION (NAVIGATION CHECK MODE)

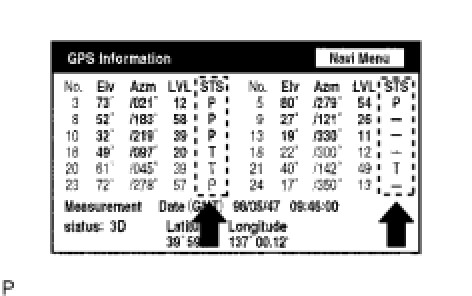

(a) Enter the Navigation Check mode's GPS Information Navigation Check Mode.





(b) Check how many of the following codes occur in the "STS" column.

For DENSO Models:

T, P

For AISIN AW Models:

04H, 08H

OK:

At least 3 codes appear.

NG -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

OK -- REPLACE NAVIGATION ECU
