Display Does Not Dim When Light Control Switch Is Turned on

NAVIGATION: NAVIGATION SYSTEM (for DVD): Display does not Dim when Light Control Switch is Turned ON
- Display does not Dim when Light Control Switch is Turned ON

INSEPCTION PROCEDURE

PROCEDURE

1. CHECK IMAGE QUALITY SETTING

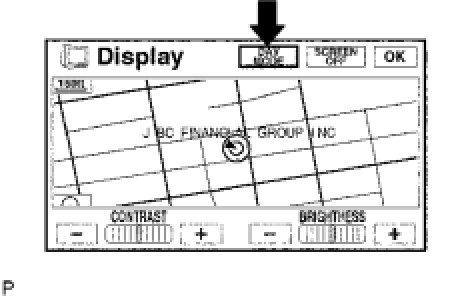

(a) Enter the display adjustment screen by pressing the "DISPLAY" switch.





(b) Turn the light control switch to TAIL.

(c) Check if "DAY MODE" on the display adjustment is ON.

OK:

"DAY MODE" is ON.

OK -- TURN FORCED "DAY MODE" SETTING OFF
NG -- Continue to next step.

2. CHECK VEHICLE SIGNAL (DISPLAY CHECK MODE)

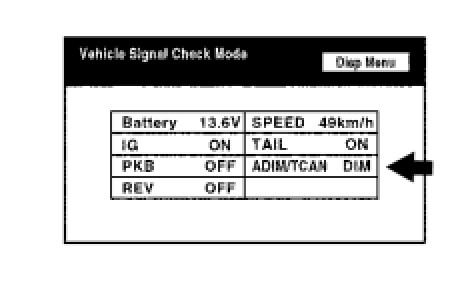

(a) Enter the Display Check mode's Vehicle Signal Check Mode Display Check Mode.





(b) Cover the automatic light control sensor on the instrument panel with a cloth.

(c) Set the instrument panel light control to less than maximum (to activate the dimmer function that works when the light control switch is in the TAIL position).

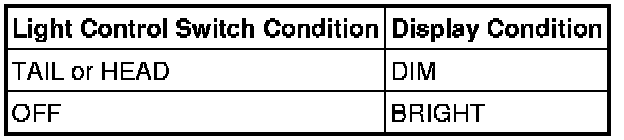

(d) Check that the display changes between DIM and BRIGHT according to the light control switch operation.

OK:





HINT
The display is updated once per second. It is normal for the display to lag behind the actual switch operation.

NG -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

OK -- REPLACE MULTI-DISPLAY
