Cellular Phone Registration Failure, Phone Directory Transfer Failure

NAVIGATION: NAVIGATION SYSTEM (for DVD): Cellular Phone Registration Failure, Phone Directory Transfer Failure
- Cellular Phone Registration Failure, Phone Directory Transfer Failure

INSEPCTION PROCEDURE

PROCEDURE

1. CHECK CELLULAR PHONE

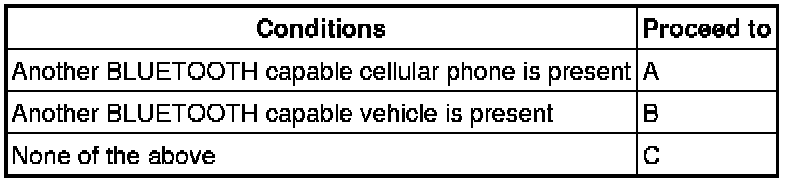

(a) Check for BLUETOOTH capable cellular phones and vehicles in the area.





C -- CHECK CELLULAR PHONE

B -- CHECK USING ANOTHER BLUETOOTH CAPABLE VEHICLE
A -- Continue to next step.

2. CHECK USING ANOTHER CELLULAR PHONE

(a) Check if the system functions using another BLUETOOTH capable cellular phone.

OK:

System functions.

NG -- CHECK CELLULAR PHONE

OK -- USE BLUETOOTH CAPABLE CELLULAR PHONE (DEPENDING ON THE VERSION)

3. CHECK USING ANOTHER BLUETOOTH CAPABLE VEHICLE

(a) Check if the cellular phone is BLUETOOTH capable.

OK:

System functions.

OK -- REPLACE MULTI-DISPLAY
NG -- Continue to next step.

4. CHECK CELLULAR PHONE

(a) Check if the cellular phone can call.

HINT
When the battery charge is low, registration or directory transfer cannot be performed.

OK:

Cellular phone can call.

NG -- REPLACE CELLULAR PHONE

OK -- REPLACE MULTI-DISPLAY
