Navigation ECU Power Source Circuit

NAVIGATION: NAVIGATION SYSTEM (for DVD): Navigation ECU Power Source Circuit
- Navigation ECU Power Source Circuit

DESCRIPTION

This circuit provides power to the navigation ECU.

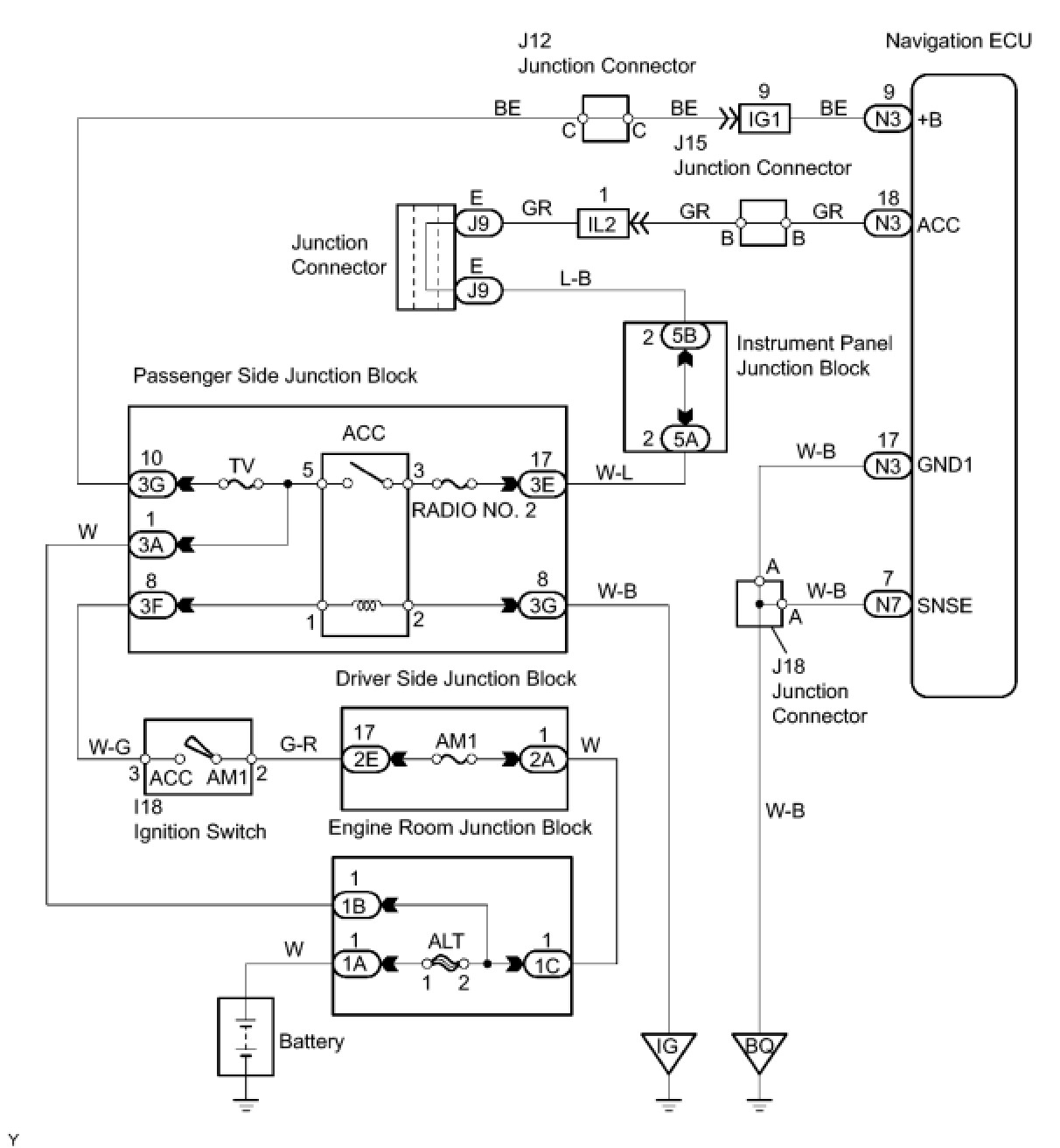

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. INSPECT FUSE (RADIO NO. 2, AM1, TV)

(a) Remove the RADIO NO. 2 and TV fuses from the passenger side junction block.

(b) Remove the AM1 fuse from the driver side junction block.

(c) Measure the resistance of the fuses.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE
OK -- Continue to next step.

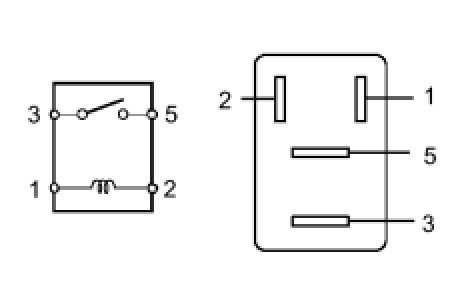

2. INSPECT RELAY (Marking: ACC)

(a) Remove the ACC relay from the passenger side junction block.

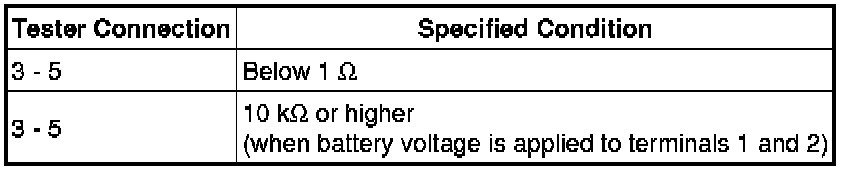

(b) Measure the resistance of the relay.

Standard resistance:





NG -- REPLACE RELAY
OK -- Continue to next step.

3. CHECK WIRE HARNESS (NAVIGATION ECU - BATTERY AND BODY GROUND)

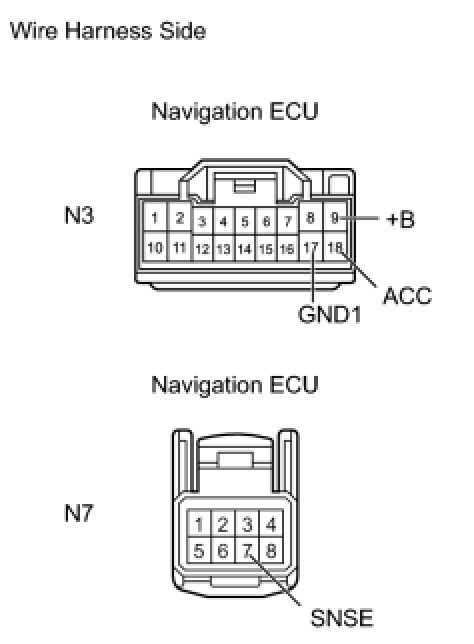

(a) Disconnect the N3 and N7 ECU connectors.





(b) Measure the resistance and voltage of the wire harness side connectors.

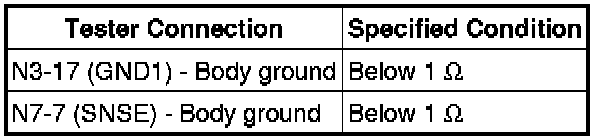

Standard resistance:

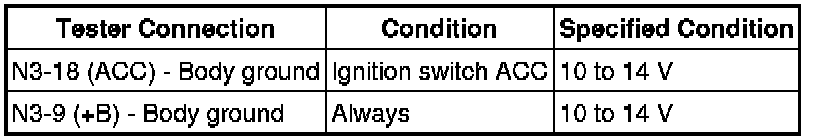

Standard voltage










NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE OR DIAGNOSTIC TROUBLE CODE CHART
