Door Control Switch Circuit

NAVIGATION: NAVIGATION SYSTEM (for DVD): Door Control Switch Circuit
- Door Control Switch Circuit

DESCRIPTION

The display panel can be opened, closed or tilted by pressing the panel switch on A/C control.

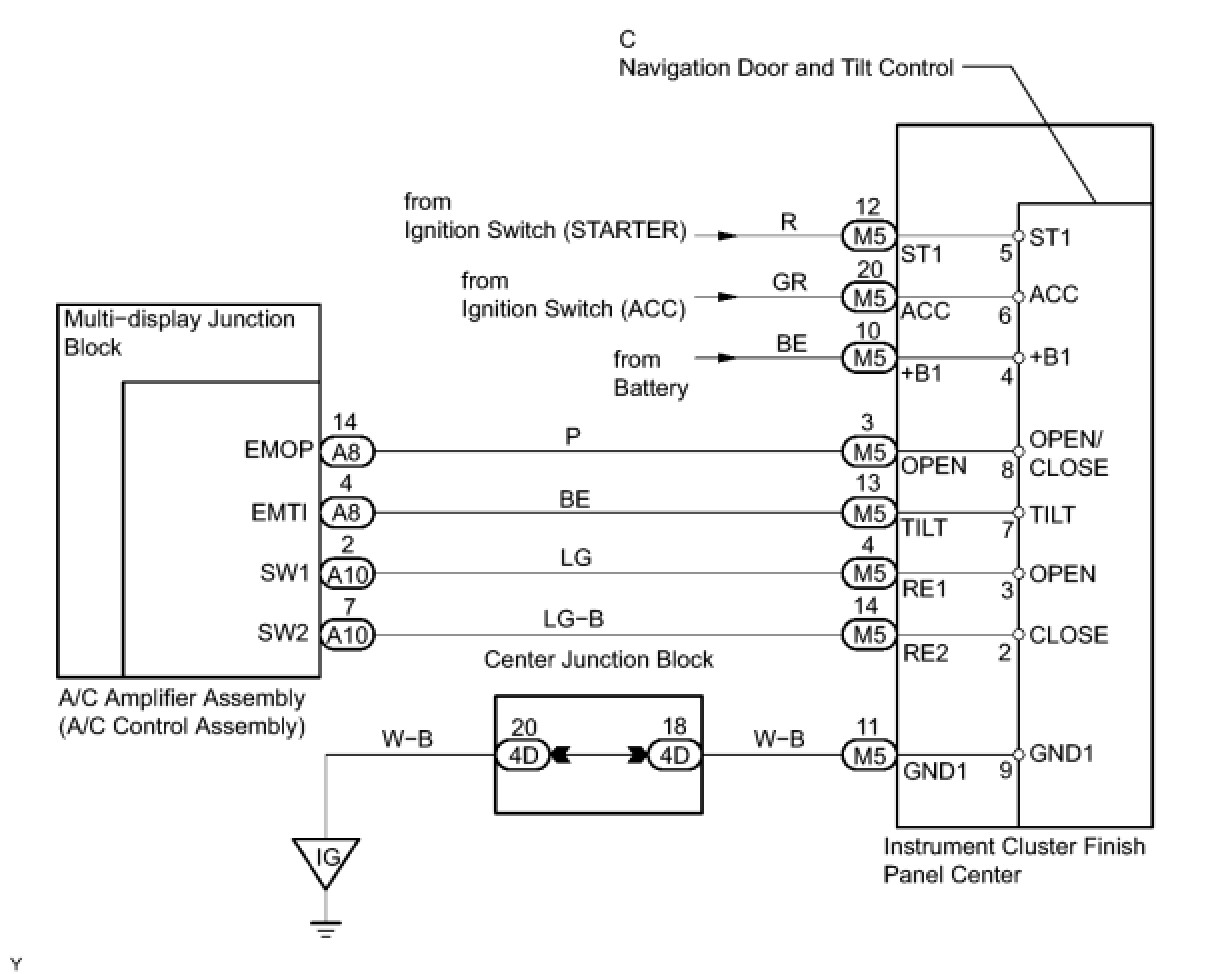

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (INSTRUMENT CLUSTER FINISH PANEL CENTER - BATTERY AND BODY GROUND)

(a) Disconnect the M5 panel connector.

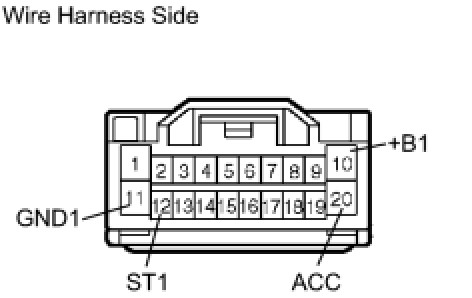

(b) Measure the resistance and voltage of the wire harness side connector.

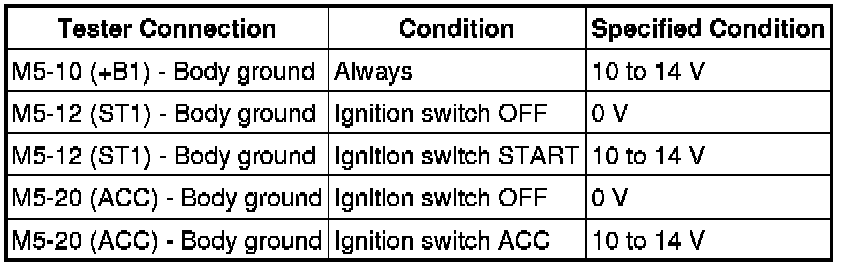

Standard resistance:

Standard voltage










NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

2. CHECK WIRE HARNESS (NAVIGATION ECU - STEREO COMPONENT AMPLIFIER AND BODY GROUND)

(a) Disconnect the M5 panel connector.





(b) Disconnect the A8 and A10 A/C connectors.

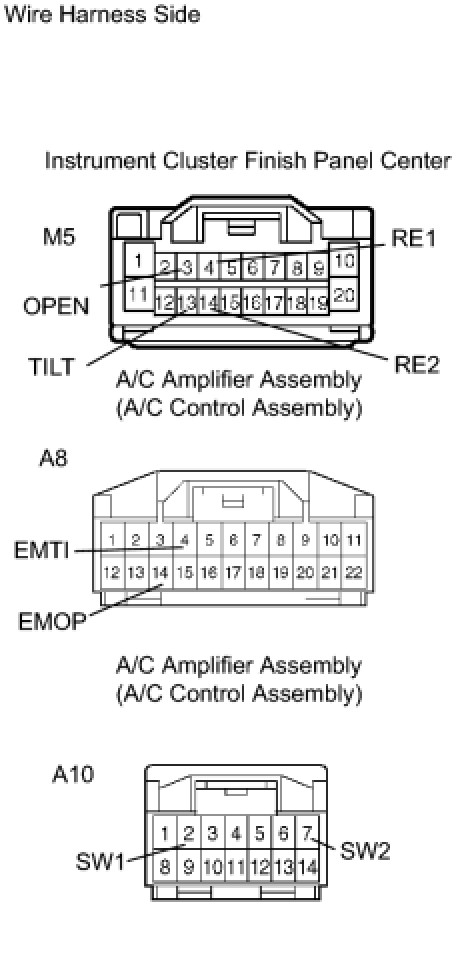

(c) Measure the resistance of the wire harness connectors.

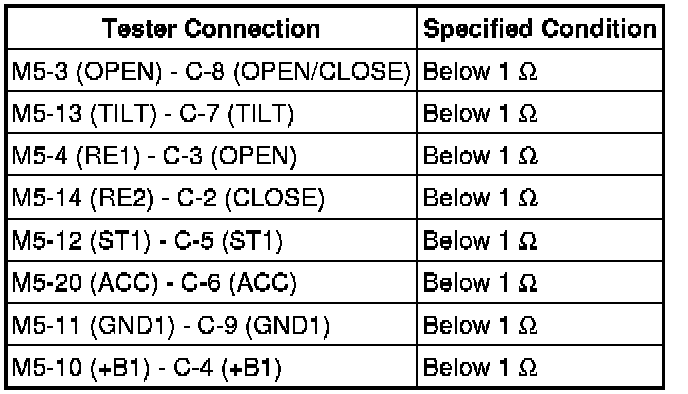

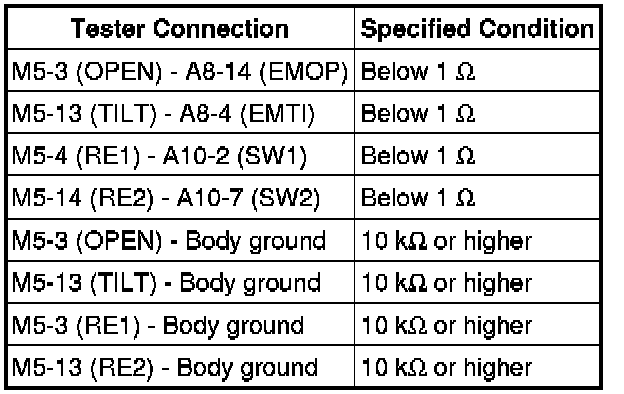

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

3. INSPECT INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

(a) Remove the instrument cluster finish panel center.





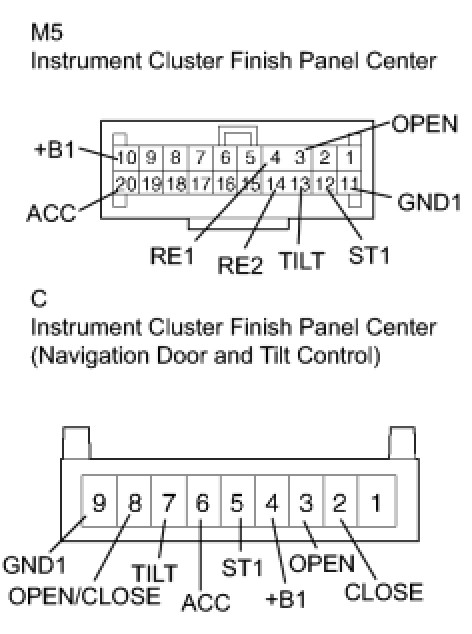

(b) Measure the resistance of the panel.

Standard resistance:





NG -- REPAIR OR REPLACE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
