Display Check Mode

NAVIGATION: NAVIGATION SYSTEM (for DVD): DISPLAY CHECK MODE

1. HOW TO PERFORM COLOR BAR CHECK

HINT
* This mode checks the color display of the multi-display.
* Illustrations may differ from the actual vehicle depending on the device settings and options.
(a) Enter diagnostic mode Navigation System (for DVD).

(b) Select "Display Check" from the "Diagnosis MENU" screen.

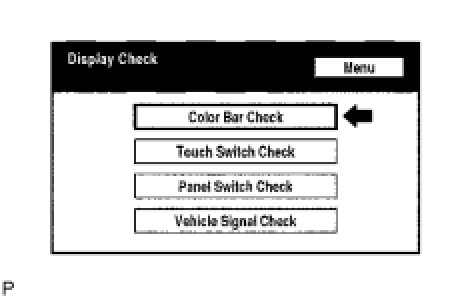

(c) Select "Color Bar Check" from the "Display Check" screen.

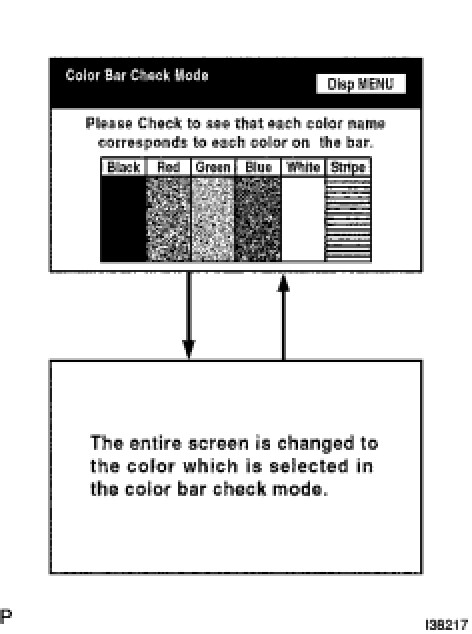

(d) Select color bar from the "Color Bar Check Mode" screen.





HINT
* The entire screen turns to the color or stripe selected.
* Touching the display will return to the "Color Bar Check" screen.
2. HOW TO PERFORM TOUCH SWITCH CHECK

HINT
* This mode checks the touch switch operation condition of the multi-display.
* Illustrations may differ from the actual vehicle depending on the device settings and options.
(a) Enter diagnostic mode Navigation System (for DVD).

(b) Select "Display Check" from the "Diagnosis MENU" screen.

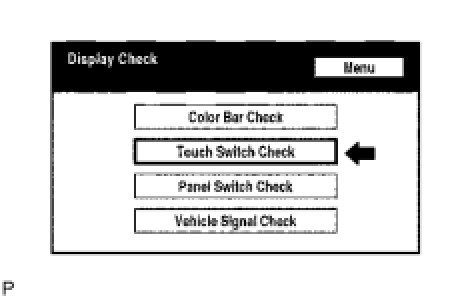

(c) Select "Touch Switch Check" from the "Display Check" screen.

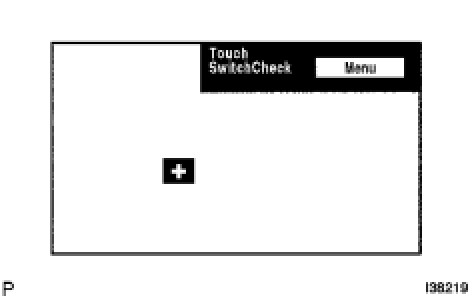

(d) Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.





HINT
* A "+" mark is displayed where the display is touched.
* The "+" mark remains on the display even after the finger is removed.
3. HOW TO PERFORM VEHICLE SIGNAL CHECK

HINT
* This mode checks the input of vehicle signals to the multi-display.
* Illustrations may differ from the actual vehicle depending on the device settings and options.
(a) Enter diagnostic mode Navigation System (for DVD).

(b) Select "Display Check" from the "Diagnosis MENU" screen.

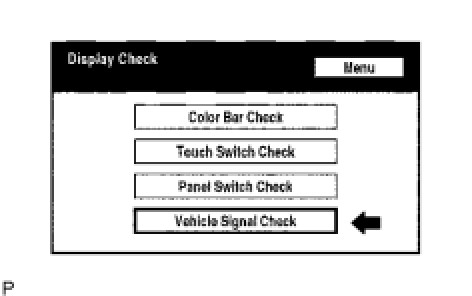

(c) Select "Vehicle Signal Check" from the "Display Check" screen.





(d) When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

HINT
* Only conditions having inputs are displayed.
* This screen is updated once per second when input signals to the vehicle are changed.
