Diagnosis Display Detailed Description

NAVIGATION: NAVIGATION SYSTEM (for DVD): DIAGNOSIS DISPLAY DETAILED DESCRIPTION

HINT
* This section contains a detailed description of displays within diagnostic mode.
* Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle.
1. SYSTEM CHECK

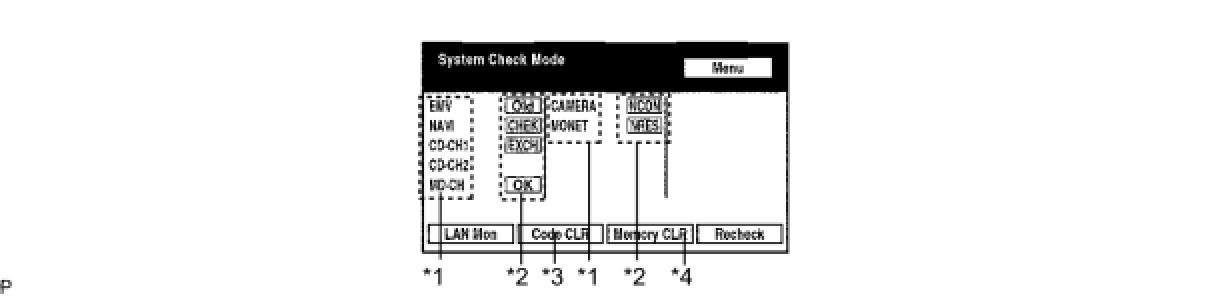

(a) System Check Mode Display

(1) Device Names and Hardware Address/*1

HINT

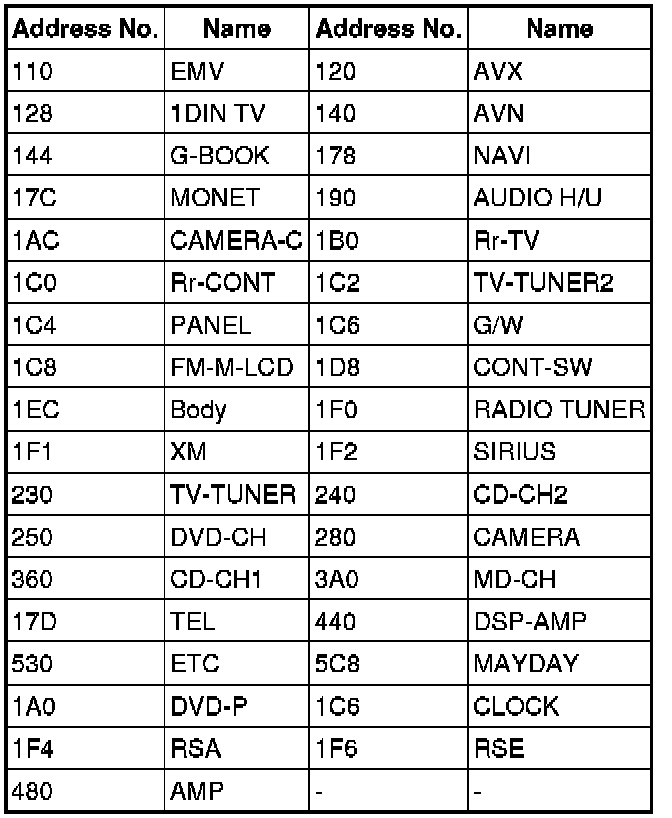

* Registered device names are displayed below.
* If a device name is unknown to the system, its physical address is shown instead.

(2) Check Result/*2

HINT

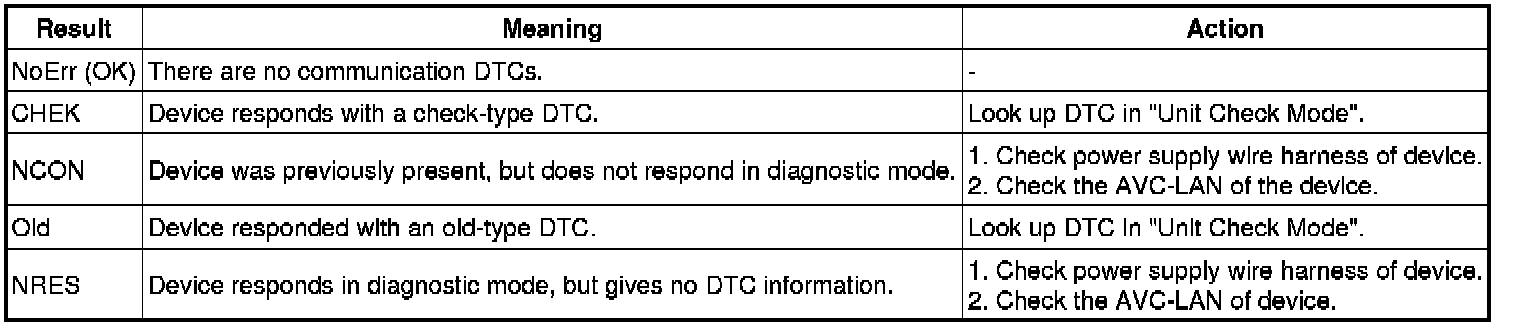

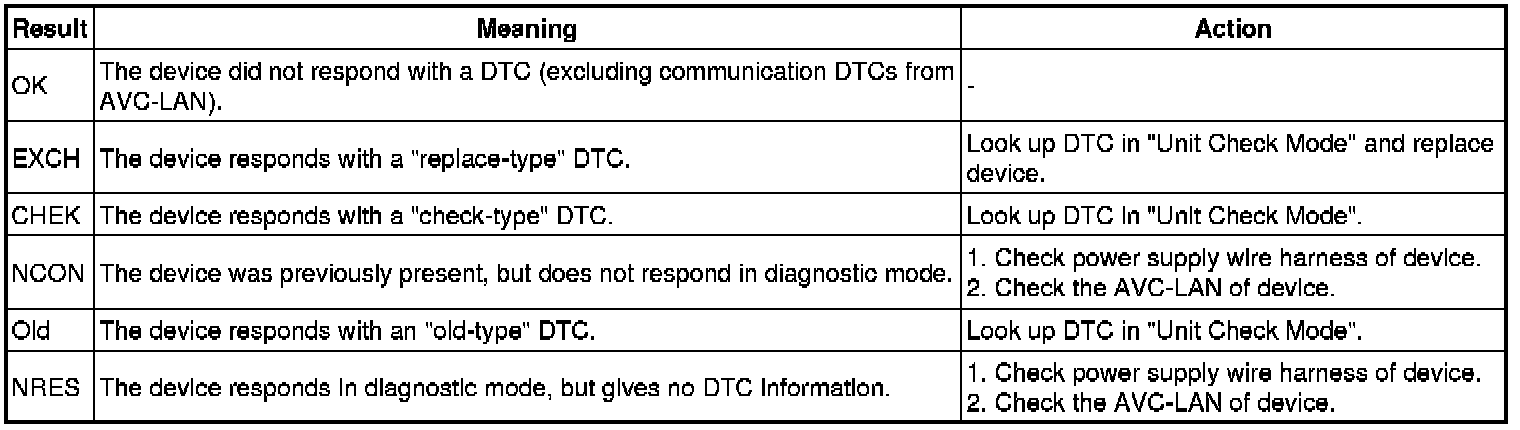

Result codes for all devices are shown below.

(3) Code Clear/*3

Present DTCs are cleared.

(4) Memory Clear/*4

Present and past DTCs and registered connected device names are cleared.

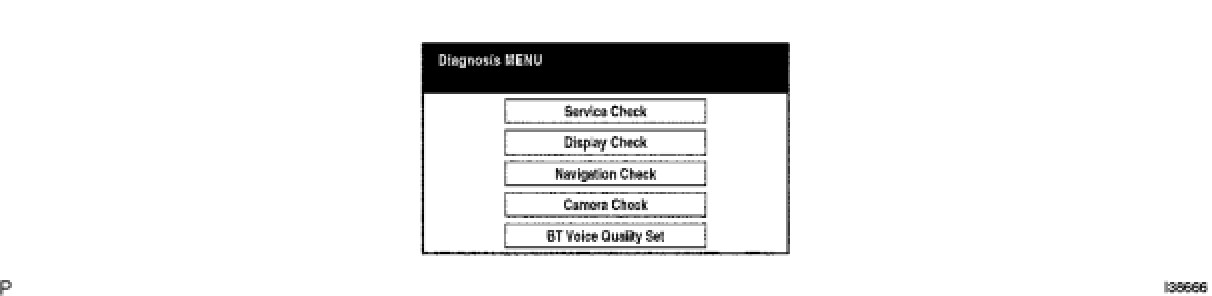

(b) Diagnosis MENU Display

HINT
Each item is grayed out or not displayed based on the device settings.

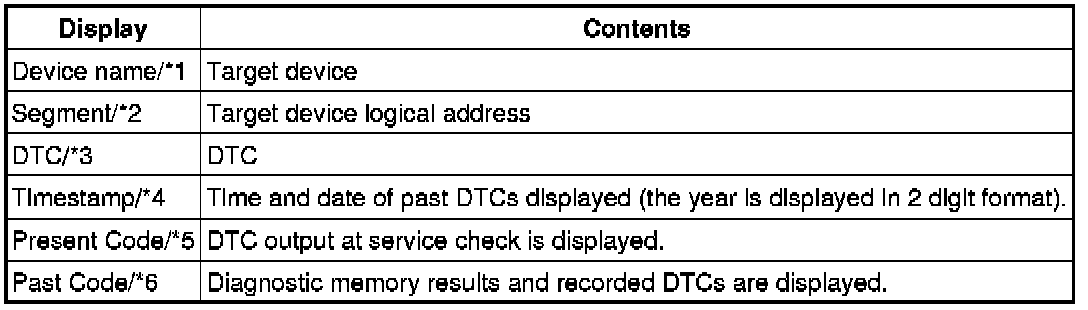

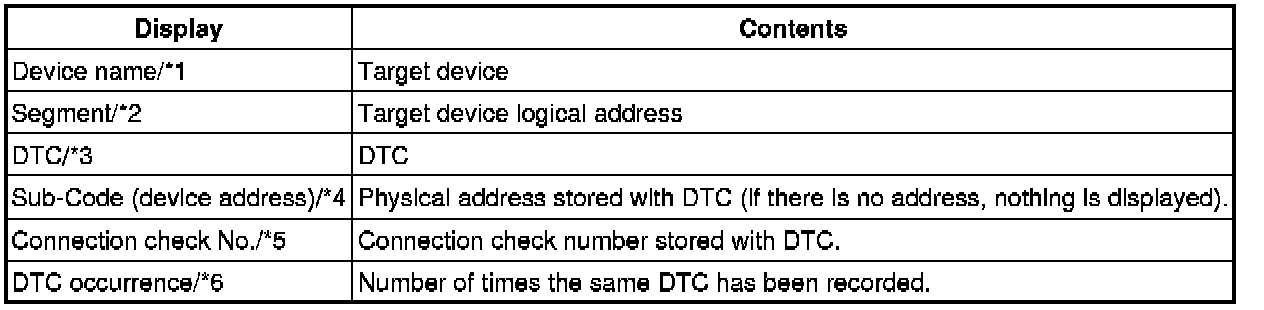

(c) Unit Check Mode Screen

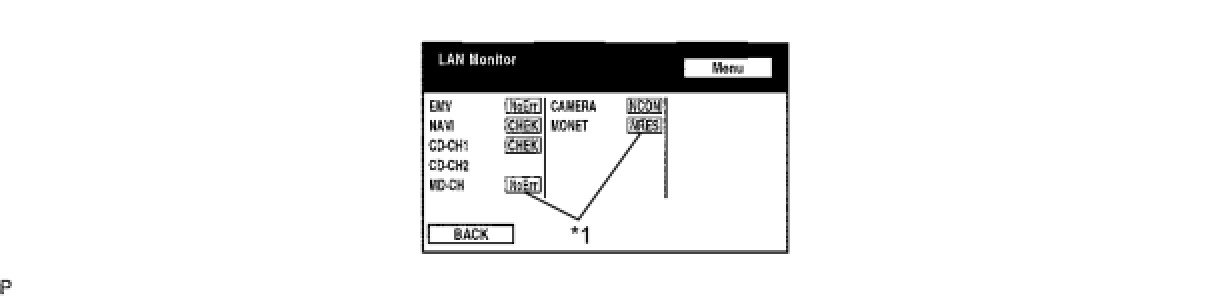

(d) LAN Monitor (Original) Screen

(1) Check result/*1

HINT
Check results of all the devices are displayed.

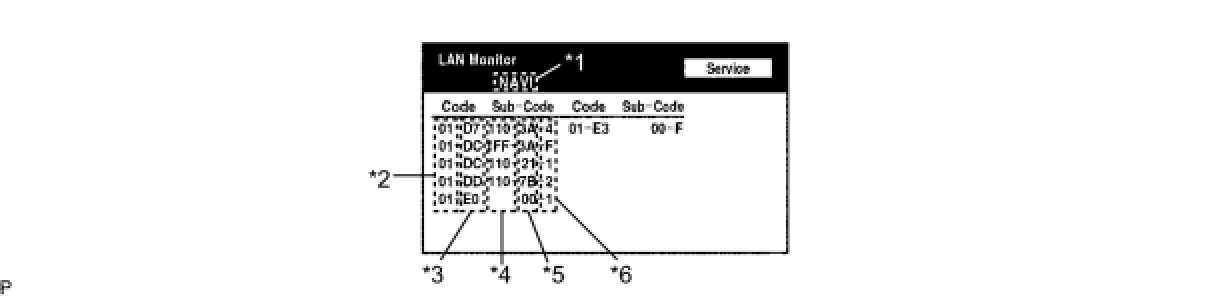

(e) LAN Monitor (Individual) Screen

2. DISPLAY CHECK

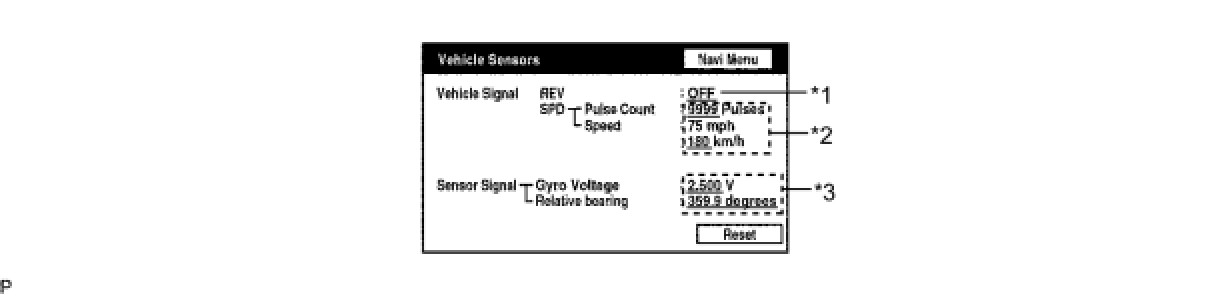

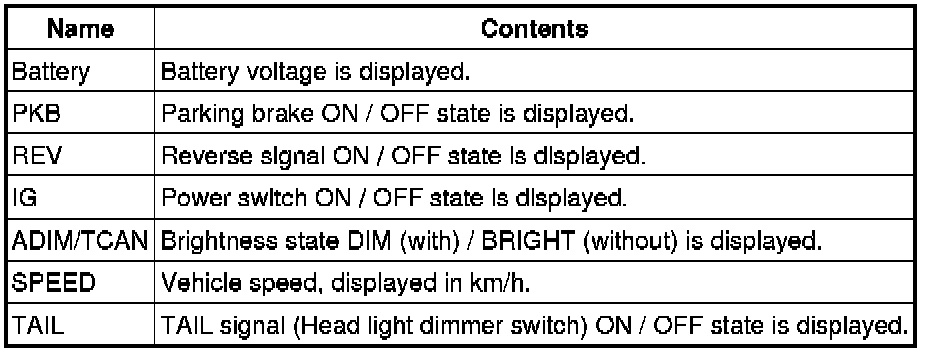

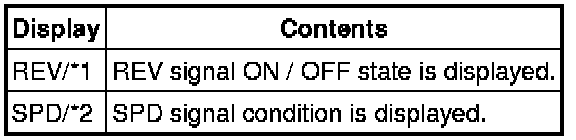

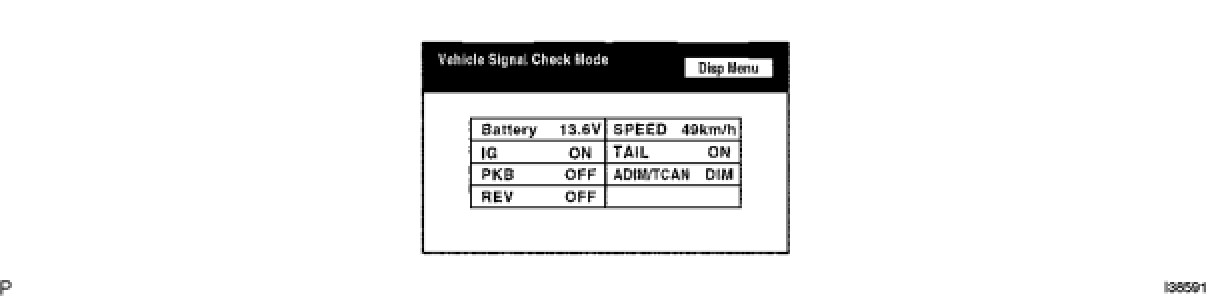

(a) Vehicle Signal Check Mode Screen

HINT
* Only items sending a vehicle signal will be displayed.
* This screen is updated once per second when input signals to the vehicle are changed.
3. NAVIGATION CHECK

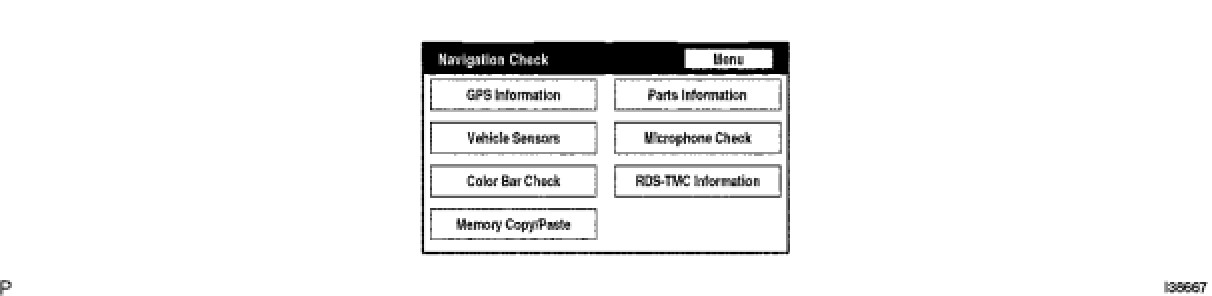

(a) Navigation Check Menu Screen

HINT
Each item is grayed out or not displayed based on the device settings.

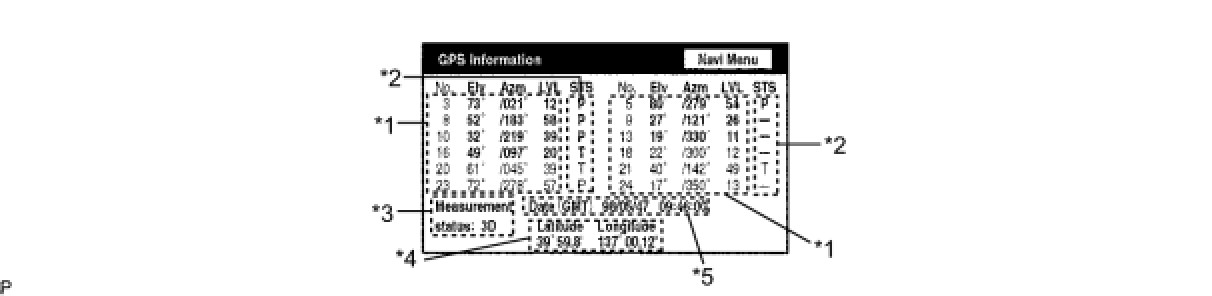

(b) GPS Information Screen

(1) Satellite information/*1

Information from a maximum of 12 satellites is displayed on the screen. This information includes the target GPS satellite number, elevation angle, direction and signal level.

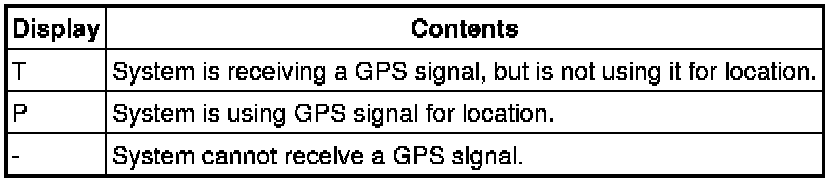

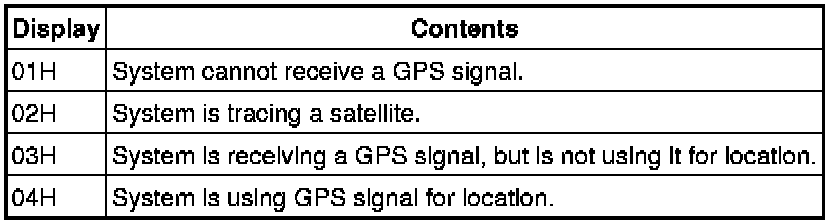

(2) Receiving condition/*2

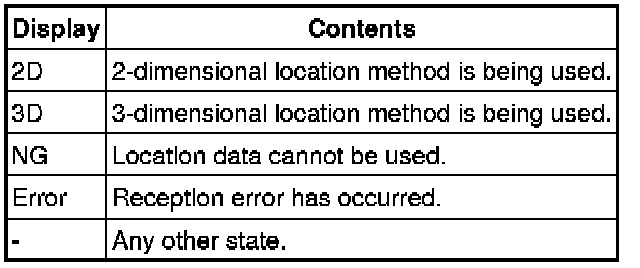

(3) Measurement information/*3

(4) Position information/*4

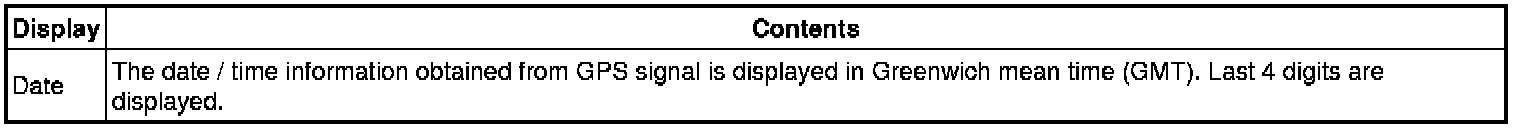

(5) Date information/*5

HINT
Signals are updated once per second only when vehicle sensor signals are changed.

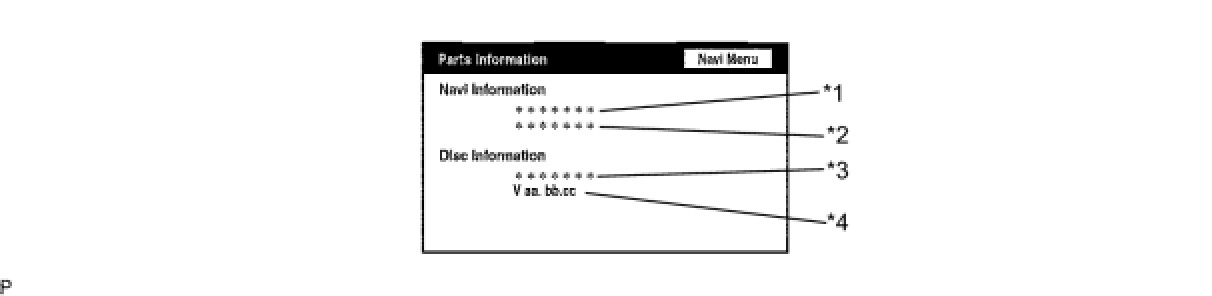

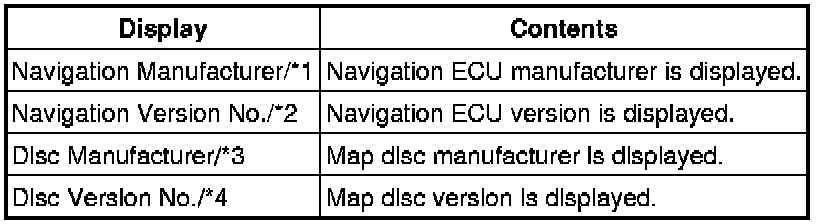

(d) Parts Information Screen

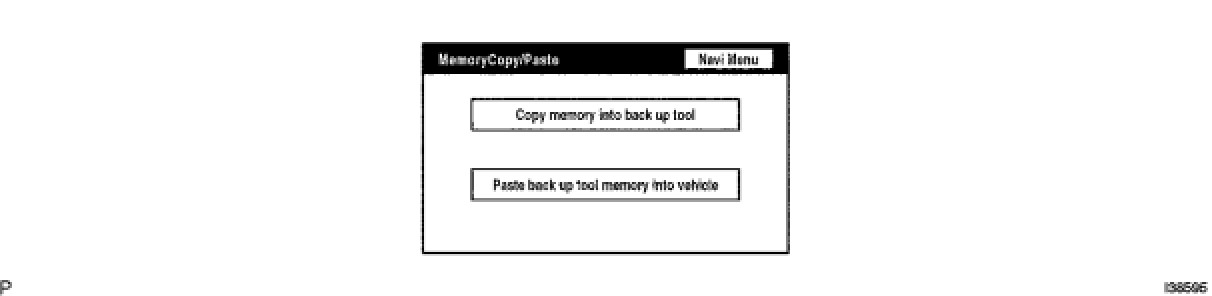

(e) Memory Copy / Paste Screen

HINT
This function cannot be used on some vehicles.
