AVC-LAN Circuit Between Radio Receiver and Stereo Component Amplifier

NAVIGATION: NAVIGATION SYSTEM (for DVD): AVC-LAN Circuit between Radio Receiver and Stereo Component Amplifier
- AVC-LAN Circuit between Radio Receiver and Stereo Component Amplifier

DESCRIPTION

The navigation system uses the AVC-LAN to control communication between all of its units. Each unit is connected to the AVC-LAN and communicates by sending and receiving switch signals.

When the AVC-LAN has a +B short or a GND short, communication is cut and the navigation system will not function normally.

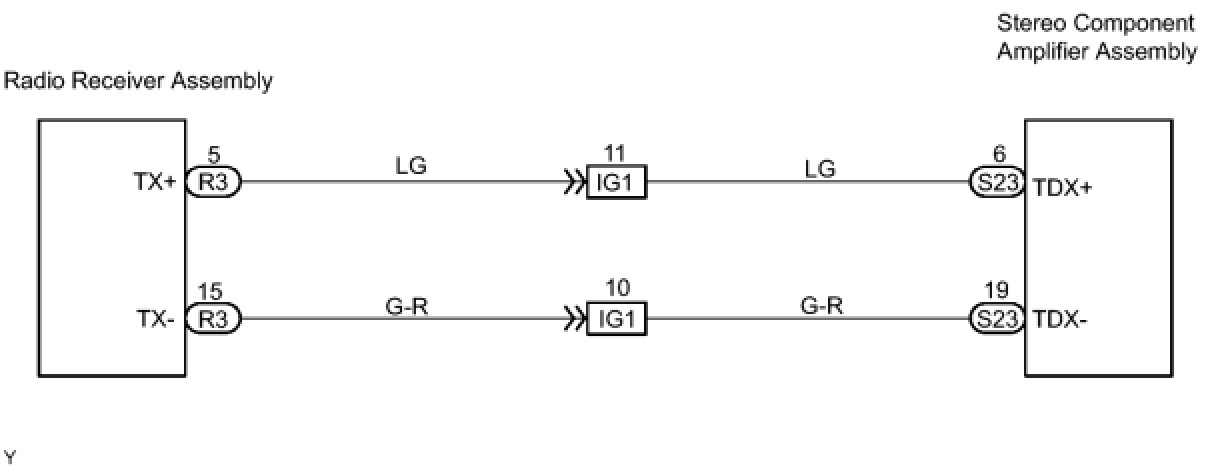

WIRING DIAGRAM





INSEPCTION PROCEDURE

PROCEDURE

1. CHECK WIRE HARNESS (RADIO RECEIVER - STEREO COMPONENT AMPLIFIER)

(a) Disconnect the R3 receiver connector.





(b) Disconnect the S23 amplifier connector.

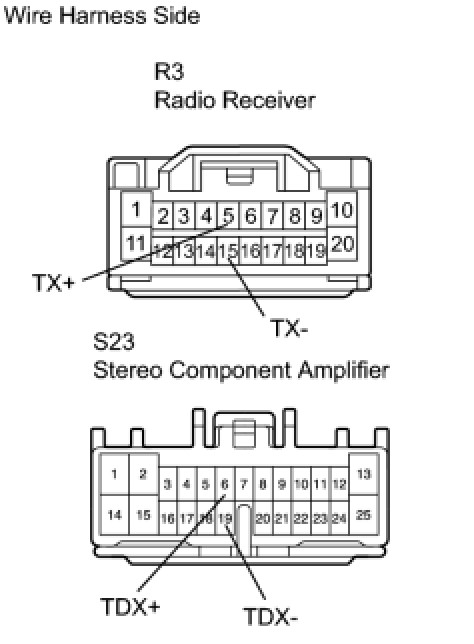

(c) Measure the resistance of the wire harness side connectors.

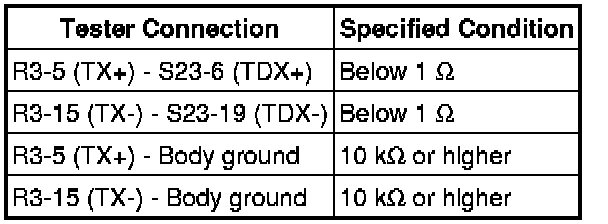

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE OR DIAGNOSTIC TROUBLE CODE CHART
