Removal

NAVIGATION: NAVIGATION ECU: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE REAR FLOOR FINISH PLATE Removal

3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

4. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH Removal

5. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH Removal

6. REMOVE SPARE WHEEL COVER ASSEMBLY

7. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR Removal

8. REMOVE TOOL BOX COVER Removal

9. REMOVE TONNEAU COVER ASSEMBLY Removal

10. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT Removal

11. REMOVE LUGGAGE COMPARTMENT TRAY BRACKET FRONT

(a) Remove the 2 bolts, 2 nuts and 2 brackets.

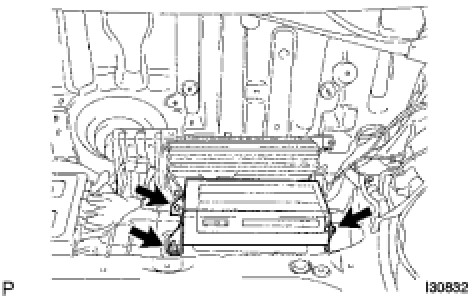

12. REMOVE NAVIGATION ECU





(a) Remove the bolt and 2 nuts.

(b) Disconnect the 3 connectors and remove the ECU.

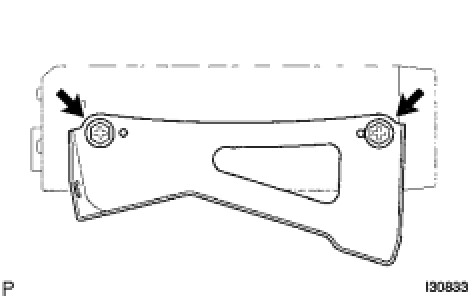

13. REMOVE DISC PLAYER BRACKET





(a) Remove the 2 screws and bracket.

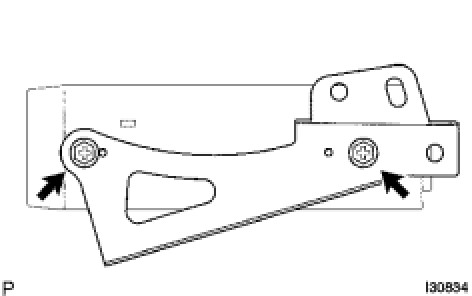

14. REMOVE NO. 2 DISC PLAYER BRACKET





(a) Remove the 2 screws and bracket.
