Removal

DOOR LOCK: WIRELESS DOOR LOCK BUZZER: REMOVAL

1. REMOVE TIRE

2. REMOVE FRONT FENDER WHEEL OPENING MOULDING LH





(a) Remove the 5 screws and moulding.

(b) Remove the 2 clips.





3. REMOVE WIRELESS DOOR LOCK BUZZER

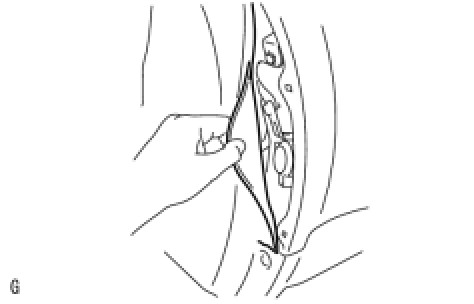

(a) Fold back the fender liner.





(b) Remove the bolt.





(c) Disconnect the connector and remove the buzzer.
