ENGINE IMMOBILIZER: TRANSPONDER KEY ECU: REMOVAL

1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. INSPECT CENTER FRONT WHEEL

4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Remove the instrument panel safety pad Removal.

5. REMOVE STEERING COLUMN ASSEMBLY Disassembly

6. REMOVE NO. 1 INSTRUMENT PANEL PIN Disassembly

7. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT Disassembly

8. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT Disassembly

9. REMOVE FRONT DEFROSTER NOZZLE Disassembly

10. REMOVE NO. 1 HEATER TO REGISTER DUCT Disassembly

11. REMOVE NO. 3 HEATER TO REGISTER DUCT Disassembly

12. REMOVE NO. 2 HEATER TO REGISTER DUCT Disassembly

13. REMOVE INSTRUMENT PANEL REINFORCEMENT Disassembly

14. REMOVE TRANSPONDER KEY ECU ASSEMBLY

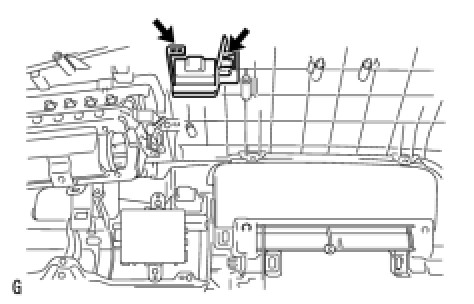

(a) Remove the 2 screws and ECU.
