Installation

AUDIO / VISUAL: RADIO ANTENNA HOLDER: INSTALLATION

1. INSTALL WITH HOLDER ANTENNA ASSEMBLY

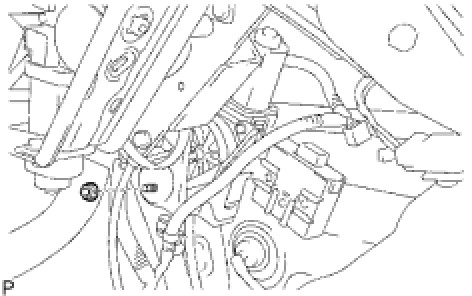

(a) Install the antenna with the nut.

(b) Connect the connector and plug to the antenna.

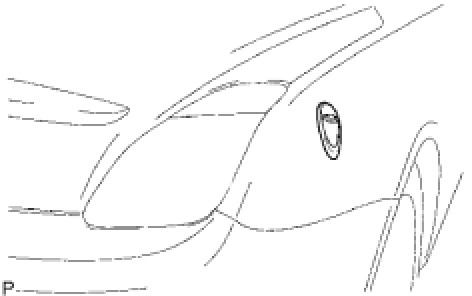

(c) Install the antenna ornament with the nut.





2. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH Installation

3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT Installation

4. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER Installation

5. INSTALL TONNEAU COVER ASSEMBLY Installation

6. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR Installation

7. INSTALL TOOL BOX COVER Installation

8. INSTALL SPARE WHEEL COVER ASSEMBLY

9. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH Installation

10. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH Installation

11. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

12. INSTALL REAR FLOOR FINISH PLATE Installation

13. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY RH Installation

14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

15. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
