Procedures

AUDIO / VISUAL: WINDOW GLASS ANTENNA WIRE: REPAIR

1. REPAIR WINDOW GLASS (ANTENNA WIRE)





(a) Clean the broken wire tips with grease, wax and silicone remover.

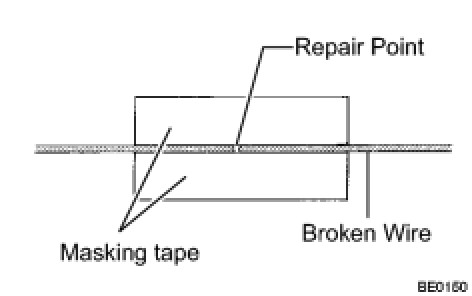

(b) Place the masking tape along both sides of the wire to be repaired.

(c) Thoroughly mix the repair agent (Dupont paste No. 4817).

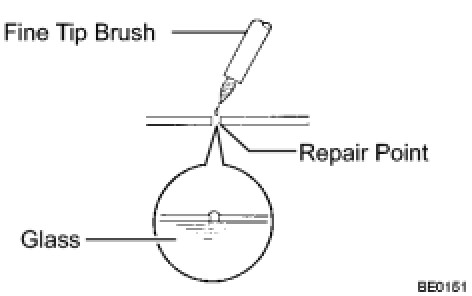

(d) Using a fine tip brush, apply a small amount of agent to the wire.

(e) After a few minutes, remove the masking tape.

NOTICE:
Do not repair the antenna wire for at least 24 hours.
