Removal

AUDIO / VISUAL: RADIO ANTENNA CORD: REMOVAL

1. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. INSPECT CENTER FRONT WHEEL

4. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Remove the instrument panel safety pad Removal.

5. REMOVE FRONT WIPER ARM RH Removal

6. REMOVE FRONT WIPER ARM LH Removal

7. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal

8. REMOVE WINDSHIELD WIPER LINK ASSEMBLY Removal

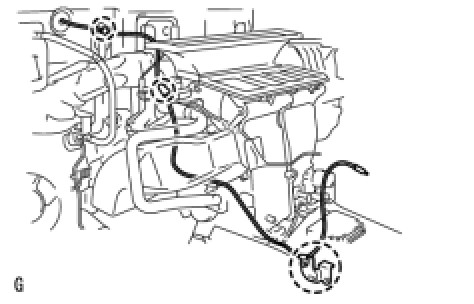

9. REMOVE ANTENNA CORD SUB-ASSEMBLY

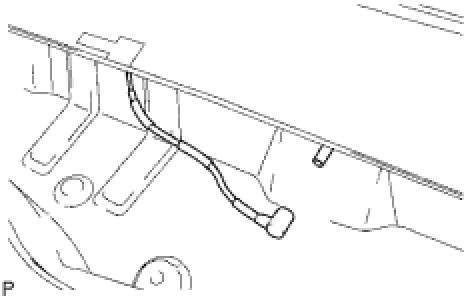

(a) Disconnect the connector.





(b) Remove the bolt and detach the 2 clamps.

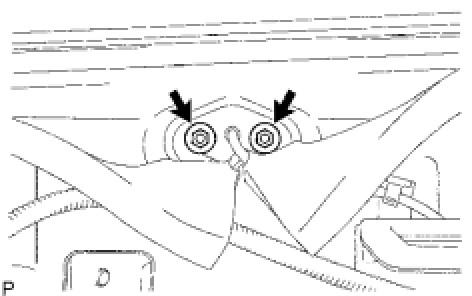

(c) Remove the 2 nuts and antenna cord.

10. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

11. REMOVE REAR SEAT HEADREST PLATE COVER Removal

12. REMOVE WIND DEFLECTOR BOARD ASSEMBLY Removal

13. REMOVE REAR SEAT HEADREST PLATE Removal

14. REMOVE REAR SEAT HEADREST ASSEMBLY Removal

15. REMOVE REAR SEATBACK ASSEMBLY Removal

16. REMOVE TONNEAU COVER STOPPER SUB-ASSEMBLY RH Removal

17. REMOVE REAR FLOOR FINISH PLATE Removal

18. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

19. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH Removal

20. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH Removal

21. REMOVE SPARE WHEEL COVER ASSEMBLY

22. REMOVE TOOL BOX COVER Removal

23. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR Removal

24. REMOVE TONNEAU COVER ASSEMBLY Removal

25. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER Removal

26. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT Removal

27. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH Removal

28. REMOVE NO. 3 ANTENNA CORD SUB-ASSEMBLY

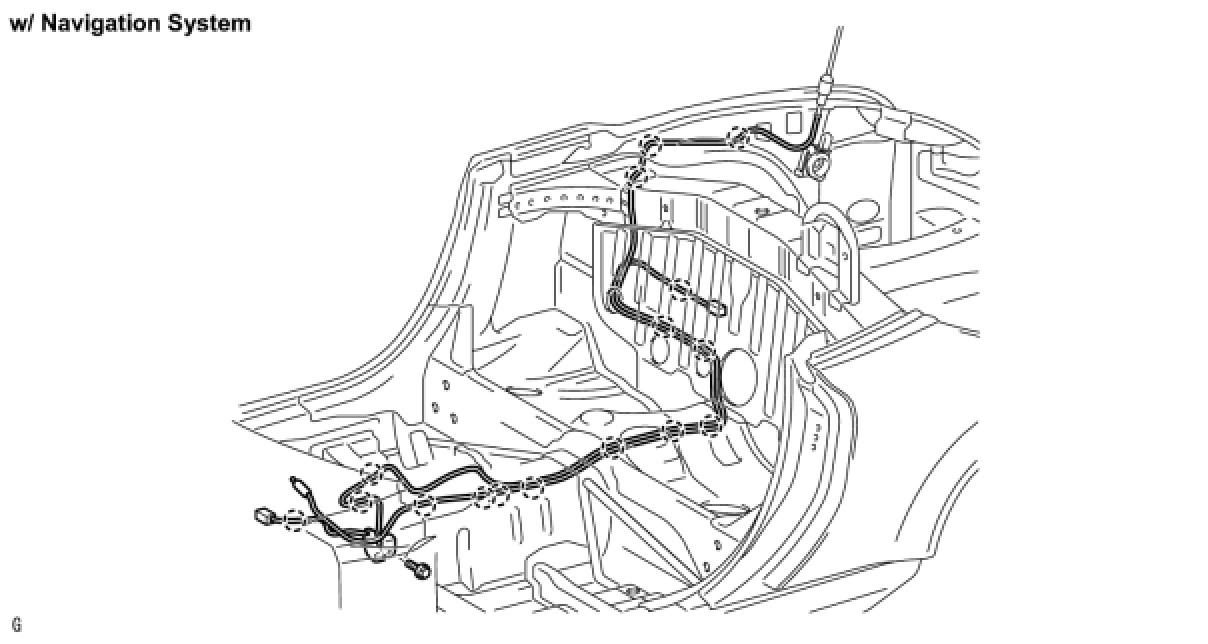

(a) w/ Navigation System:

(1) Disconnect the 4 connectors.

(2) Remove the bolt.

(3) Detach the 16 clamps and remove the antenna cord.

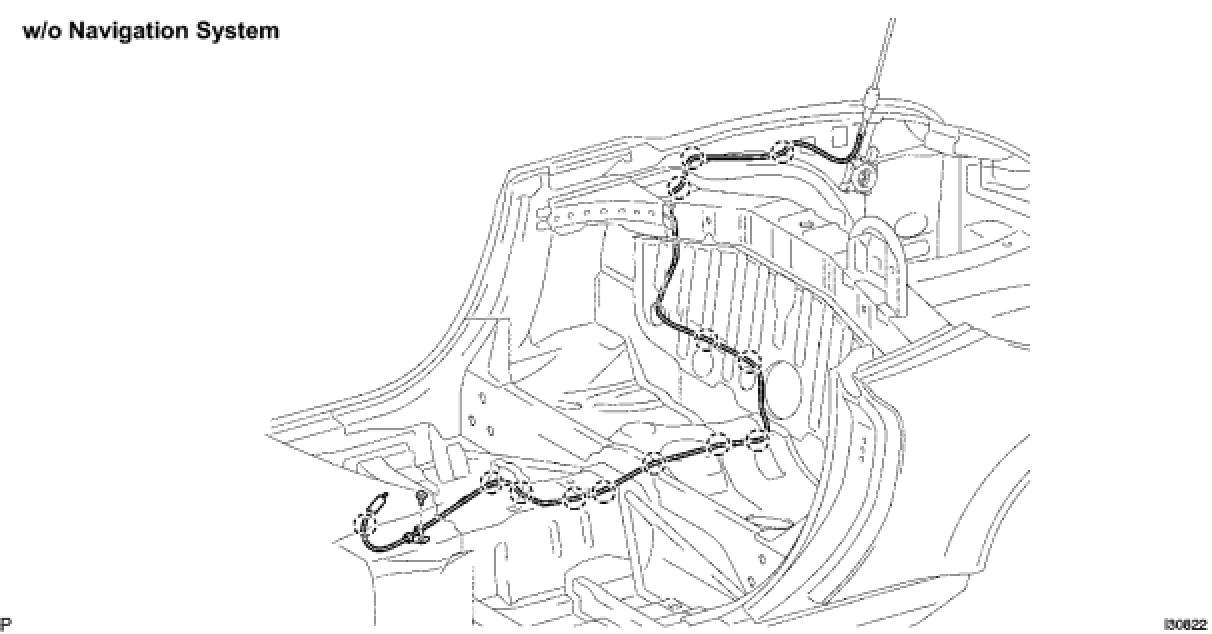

(b) w/o Navigation System:

(1) Disconnect the 2 connectors.

(2) Remove the bolt.

(3) Detach the 13 clamps and remove the antenna cord.
