Installation

AUDIO / VISUAL: RADIO ANTENNA CORD: INSTALLATION

1. INSTALL NO. 3 ANTENNA CORD SUB-ASSEMBLY

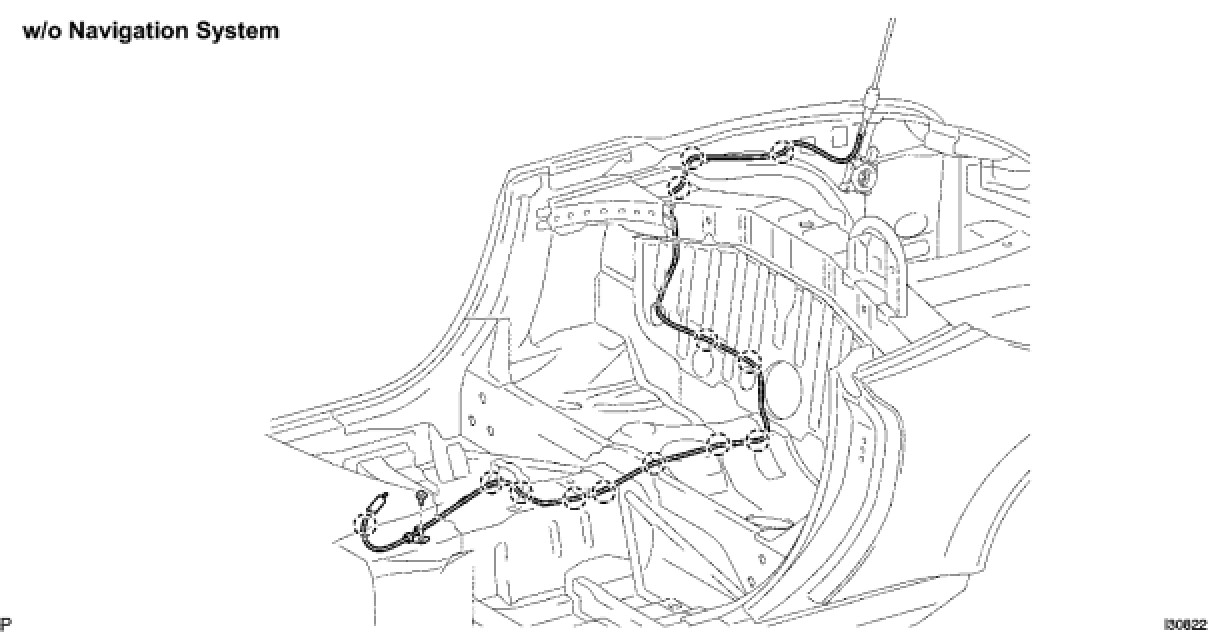

(a) w/o Navigation System:

(1) Attach the 13 clamps and install the antenna cord.

(2) Install the bolt.

(3) Connect the 2 connectors.

(b) w/ Navigation System:

(1) Attach the 16 clamps and install the antenna cord.

(2) Install the bolt.

(3) Connect the 4 connectors.

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH Installation

3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT Installation

4. INSTALL LUGGAGE COMPARTMENT TRIM COVER INNER LOWER Installation

5. INSTALL TONNEAU COVER ASSEMBLY Installation

6. INSTALL LUGGAGE COMPARTMENT TRIM COVER SUB-ASSEMBLY REAR Installation

7. INSTALL TOOL BOX COVER Installation

8. INSTALL SPARE WHEEL COVER ASSEMBLY

9. INSTALL LUGGAGE COMPARTMENT TRIM COVER LH Installation

10. INSTALL LUGGAGE COMPARTMENT TRIM COVER RH Installation

11. INSTALL LUGGAGE COMPARTMENT FLOOR MAT

12. INSTALL REAR FLOOR FINISH PLATE Installation

13. INSTALL TONNEAU COVER STOPPER SUB-ASSEMBLY RH Installation

14. INSTALL REAR SEATBACK ASSEMBLY Installation

15. INSTALL REAR SEAT HEADREST ASSEMBLY Installation

16. INSTALL REAR SEAT HEADREST PLATE Installation

17. INSTALL WIND DEFLECTOR BOARD ASSEMBLY Installation

18. INSTALL REAR SEAT HEADREST PLATE COVER Installation

19. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

20. INSTALL ANTENNA CORD SUB-ASSEMBLY

(a) Install the antenna cord with the 2 nuts.

(b) Install the bolt and attach the 2 clamps.

21. INSTALL WINDSHIELD WIPER LINK ASSEMBLY Installation

22. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation

23. INSTALL FRONT WIPER ARM LH Installation

24. INSTALL FRONT WIPER ARM RH Installation

25. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Install the instrument panel safety pad Installation.

26. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

27. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
