P2716

A761E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P2716: Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)
P2716 - Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT)

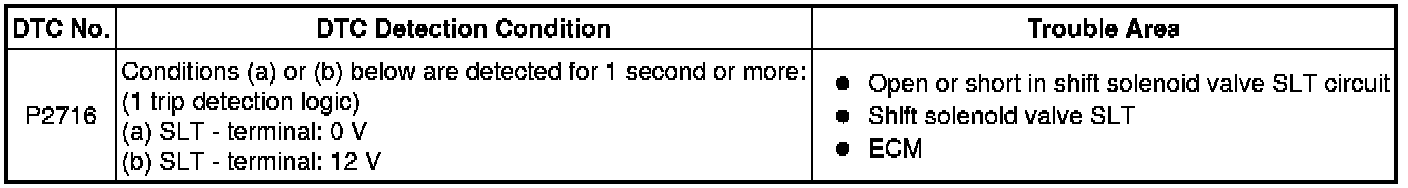

DESCRIPTION

Refer to DTC P0894 P0894.

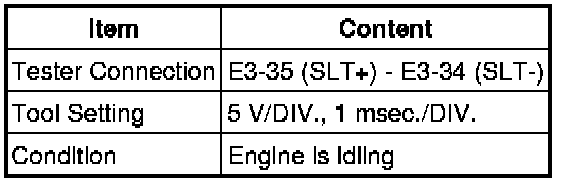

1. Reference: Inspect using an oscilloscope.





Check the waveform of the ECM connector.

OK:

Refer to illustration.





MONITOR DESCRIPTION

When an open or short in the shift solenoid valve SLT circuit is detected, the ECM interprets this as a fault. The ECM will turn on the MIL and store the DTC.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE

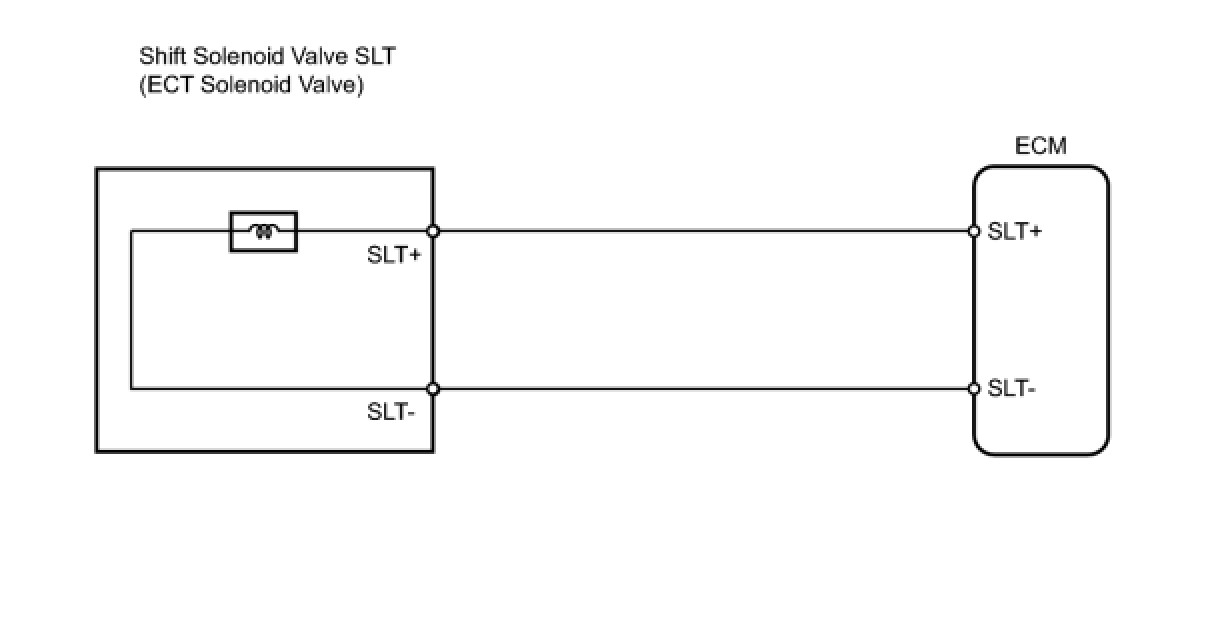

WIRING DIAGRAM





INSEPCTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

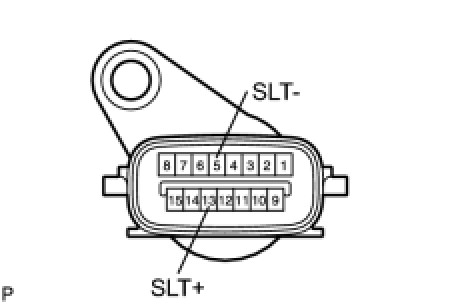

1. INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLT)

(a) Disconnect the E1 wire connector.





(b) Measure the resistance of the transmission wire.

Standard resistance:





NG -- INSPECT SHIFT SOLENOID VALVE SLT
OK -- Continue to next step.

2. CHECK WIRE HARNESS (TRANSMISSION WIRE - ECM)





(a) Disconnect the E3 ECM connector.

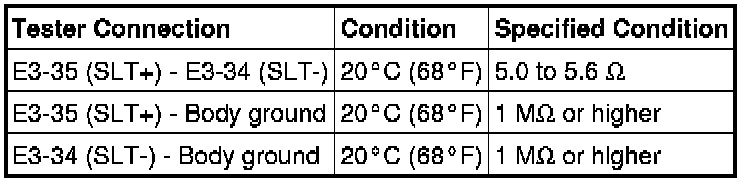

(b) Measure the resistance of the wire harness side connector.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- REPLACE ECM Service and Repair

3. INSPECT SHIFT SOLENOID VALVE SLT

(a) Remove the shift solenoid valve SLT.





(b) Measure the resistance of the solenoid valve.

Standard resistance:





(c) Connect the battery's positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating noise.

OK:

Valve moves and makes operating noise.

NG -- REPLACE SHIFT SOLENOID VALVE SLT Overhaul

OK -- REPAIR OR REPLACE TRANSMISSION WIRE
