A761E Automatic Transmission

A761E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0724: Brake Switch "B" Circuit High
P0724 - Brake Switch "B" Circuit High

DESCRIPTION

The purpose of this circuit is to prevent the engine from stalling while driving in the lock-up condition when the brakes are suddenly applied.

When the brake pedal is depressed, this switch sends a signal to the ECM. Then the ECM cancels the operation of the lock-up clutch while braking is in progress.





MONITOR DESCRIPTION

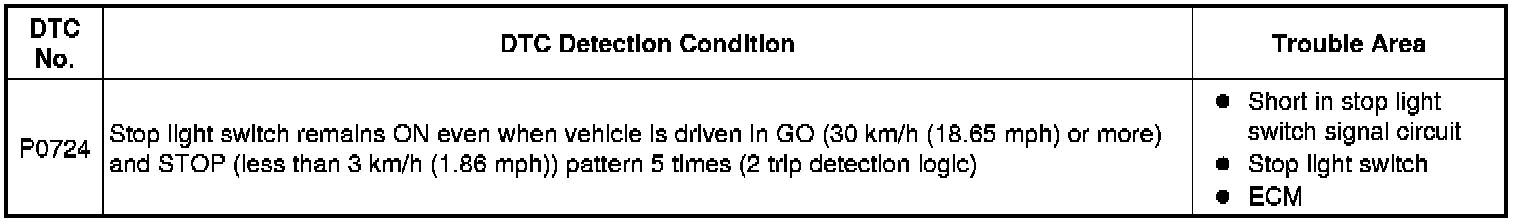

This DTC indicates that the stop light switch remains ON. When the stop light switch remains ON during GO and STOP driving, the ECM interprets this as a fault in the stop light switch. Then the MIL illuminates and the ECM stores the DTC. The vehicle must GO (30 km/h (18.63 mph) or more) and STOP (less than 3 km/h (1.86 mph)) 5 times for 2 driving cycles in order for the DTC to be output.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

The stop light switch remains on during GO and STOP 5 times.

GO and STOP are defined as follows:





TYPICAL MALFUNCTION THRESHOLDS





WIRING DIAGRAM





INSEPCTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTICE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

- Connect the Techstream to the DLC3.

- Turn the ignition switch to ON.

- Turn the Techstream on.

- Enter the following menus: Powertrain / ECT / Data List / All Data.

- According to the display on the Techstream, read the Data List.

ECT





PROCEDURE

1. INSPECT STOP LIGHT SWITCH





(a) Remove the S10 stop light switch.

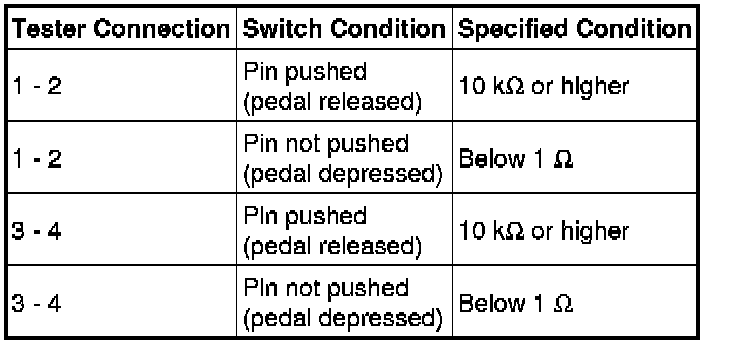

(b) Measure the resistance of the switch.

Standard resistance:





NG -- REPLACE STOP LIGHT SWITCH
OK -- Continue to next step.

2. CHECK WIRE HARNESS (ECM - BATTERY)





(a) Measure the voltage of the wire harness side connector.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR

OK -- REPLACE ECM Service and Repair
