A761E Automatic Transmission





A761E AUTOMATIC TRANSMISSION: AUTOMATIC TRANSMISSION SYSTEM: P0560: System Voltage
P0560 - System Voltage

MONITOR DESCRIPTION

The battery supplies electricity to the ECM even when the ignition switch is OFF. This electricity allows the ECM to store data such as DTC history, freeze frame data, fuel trim values, and other data. If the battery voltage falls below a minimum level, the memory is cleared and the ECM will conclude that there is a fault in the power supply circuit. At the next engine start, the ECM will illuminate the MIL and set a DTC.

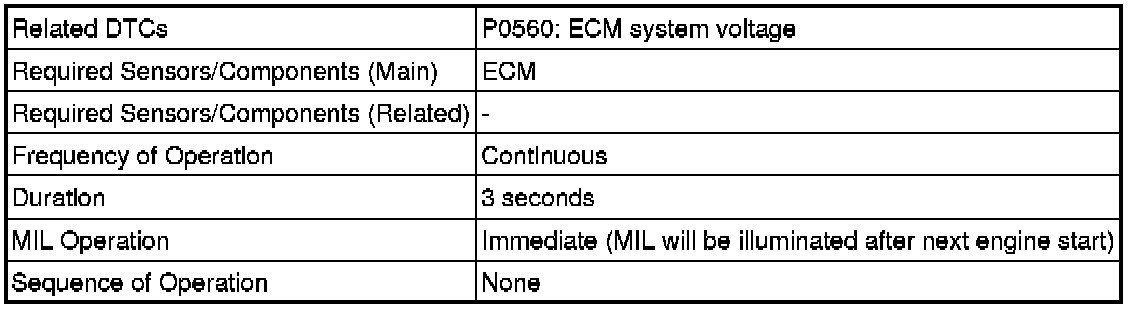

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





WIRING DIAGRAM





INSEPCTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. READ VALUE USING TECHSTREAM (BATTERY VOLTAGE)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / ECT / Data List / All Data / Battery Voltage.

Result





B -- INSPECT BATTERY
A -- Continue to next step.

2. INSPECT FUSE (EFI)





(a) Remove the EFI fuse from the engine room No. 1 relay block.

(b) Measure the resistance of the fuse.

Standard resistance:

Below 1 Ohms

NG -- REPLACE FUSE AND FIND CAUSE FOR FUSE BEING BLOWN
OK -- Continue to next step.

3. CHECK WIRE HARNESS (ECM - EFI FUSE, EFI FUSE - BATTERY)





(a) Check the wire harness between the EFI fuse and ECM.

(1) Remove the EFI fuse from the engine room No. 1 relay block.

(2) Disconnect the E6 ECM connector.

(3) Measure the resistance of the wire harness side connectors.

Standard resistance:





(b) Check the wire harness between the EFI fuse and battery.

(1) Remove the EFI fuse from the engine room No. 1 relay block.

(2) Disconnect the cable from the battery positive (+) terminal.

(3) Measure the resistance of the wire harness side connectors.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

4. INSPECT BATTERY

(a) Check that the battery is not depleted.

OK:

Battery voltage is 11 V or more.

NG -- REPLACE BATTERY

OK -- CHECK FOR INTERMITTENT PROBLEMS
