Translate ECU Malfunction - Vehicle Stability Control System

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1369/26: Translate ECU Malfunction
C1369/26 - Translate ECU Malfunction

DESCRIPTION





INSEPCTION PROCEDURE

PROCEDURE

1. CHECK DTC FOR VSC

(a) Turn the ignition switch ON.

(b) Check that the VSC OFF indicator light turns on.

(c) Check for DTCs.

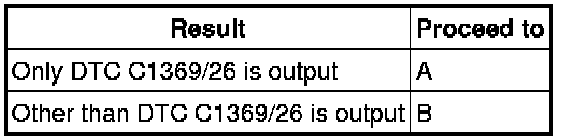

Result:





B -- REPAIR CIRCUIT INDICATED BY OUTPUT DTC

A -- REPLACE TRANSLATE ECU
