Vehicle Stability Control System





BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
* If an abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
* If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "Refer to" below.

C0200/31 - C1201/51:





C1203/53 - C1238/38:





C1239/39 - C1254/54:

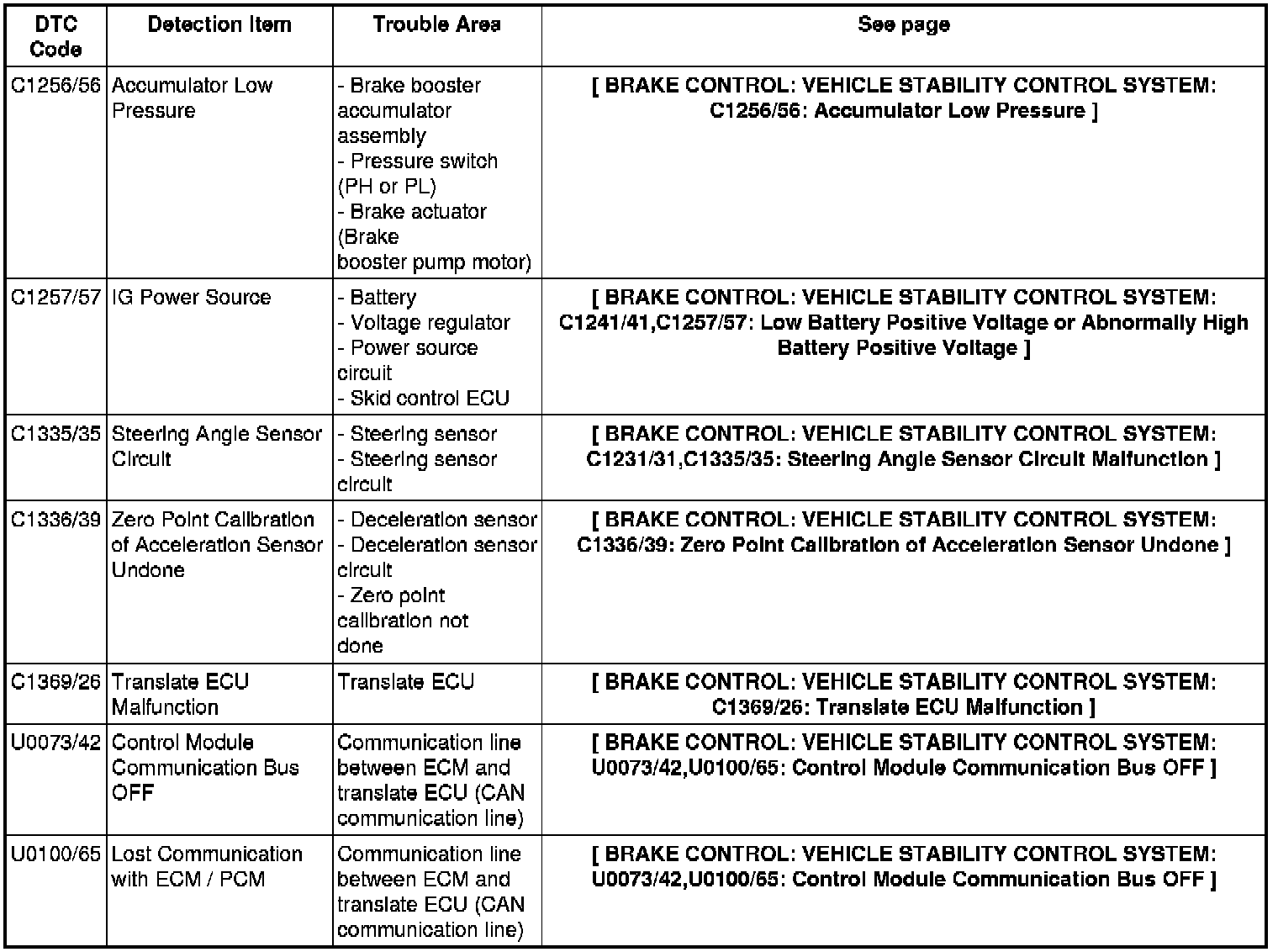

C1256/56 - C1396/26 / U0073/72 - U0100/65:
