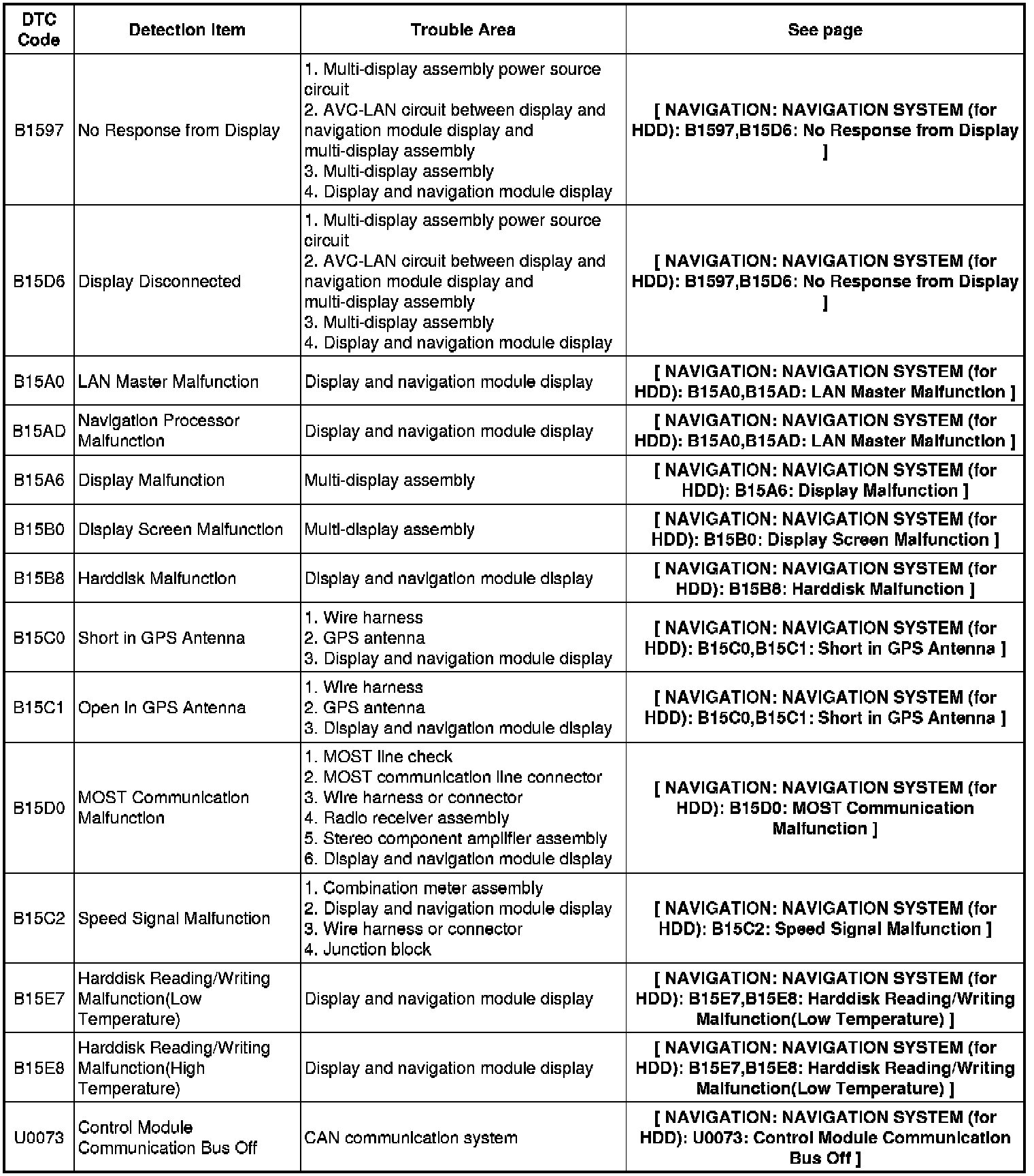

NAVIGATION: NAVIGATION SYSTEM (for HDD): DIAGNOSTIC TROUBLE CODE CHART
B156B - B15D3:
B11597 - B15E8 / U0073:
