CRUISE CONTROL: CRUISE CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

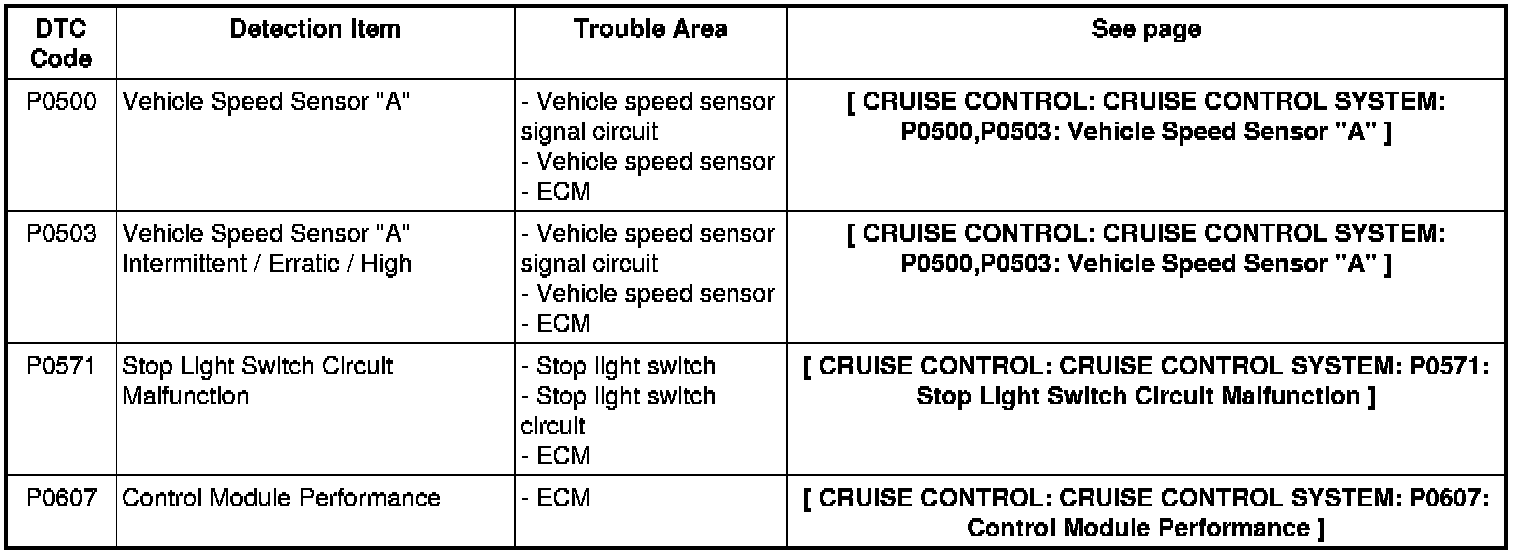

If a trouble code is indicated during the DTC check, check the circuit listed for that code in the table below. Then proceed to the appropriate information.
P0500 - P0607:
