C2176

TIRE AND WHEEL: TIRE PRESSURE WARNING SYSTEM: C2176/76: Receiver Error
C2176/76 - Receiver Error

DESCRIPTION

This DTC is stored when referencing data becomes impossible due to an internal malfunction in the tire pressure warning ECU and receiver.





INSEPCTION PROCEDURE

NOTICE:
- When replacing the tire pressure warning ECU and receiver, read the IDs stored in the old ECU using the Techstream and write them down before removal.
- It is necessary to perform initialization Programming and Relearning after registration Programming and Relearning of the transmitter IDs into the tire pressure warning ECU and receiver after the ECU and/or valve and transmitter has been replaced.
PROCEDURE

1. CLEAR DTC

(a) Clear the DTC Reading and Clearing Diagnostic Trouble Codes.

(b) Turn the ignition switch OFF.

NEXT -- Continue to next step.

2. CHECK DTC

(a) Check for DTC.

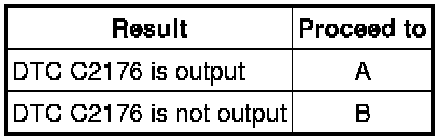

Result





B -- USE SIMULATION METHOD TO CHECK How to Proceed with Troubleshooting

A -- REPLACE TIRE PRESSURE WARNING ECU AND RECEIVER Service and Repair
