B1771

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: B1771: Passenger Side Buckle Switch Circuit Malfunction
B1771 - Passenger Side Buckle Switch Circuit Malfunction

DESCRIPTION

The passenger side buckle switch circuit consists of the occupant classification ECU and the front seat inner belt RH.

DTC B1771 is recorded when a malfunction is detected in the passenger side buckle switch circuit.





HINT
When DTC B1650/32 is detected as a result of troubleshooting for the "AIRBAG SYSTEM", check the DTCs stored in the occupant classification ECU. When DTC B1771 is output, perform troubleshooting for the DTC.

WIRING DIAGRAM





INSEPCTION PROCEDURE

HINT
* If troubleshooting (wire harness inspection) is difficult to perform, remove the front passenger seat installation bolts to see the undersurface of the seat cushion.
PROCEDURE

1. CHECK FOR DTC

(a) Turn the ignition switch ON.

(b) Clear the DTCs stored in the occupant classification ECU Reading and Clearing Diagnostic Trouble Codes.

(c) Clear the DTCs stored in the center airbag sensor Service and Repair.

(d) Turn the ignition switch OFF.

(e) Turn the ignition switch ON.

(f) Check for the DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1771 is not output.

HINT
Codes other than B1771 may be output at this time, but they are not related to this check.

OK -- USE SIMULATION METHOD TO CHECK Initial Inspection and Diagnostic Overview
NG -- Continue to next step.

2. CHECK CONNECTION OF CONNECTOR

(a) Turn the ignition switch OFF.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the occupant classification ECU and the front seat inner belt RH.

OK:

Connectors are properly connected.

NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

3. CHECK CONNECTOR

(a) Disconnect the connectors from the occupant classification ECU and front seat inner belt RH.

(b) Check that the connectors (on the center airbag sensor side and front seat inner belt RH) are not damaged.

OK:

Connectors are not deformed or damaged.

HINT
If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

NG -- REPAIR OR REPLACE FRONT SEAT WIRE RH
OK -- Continue to next step.

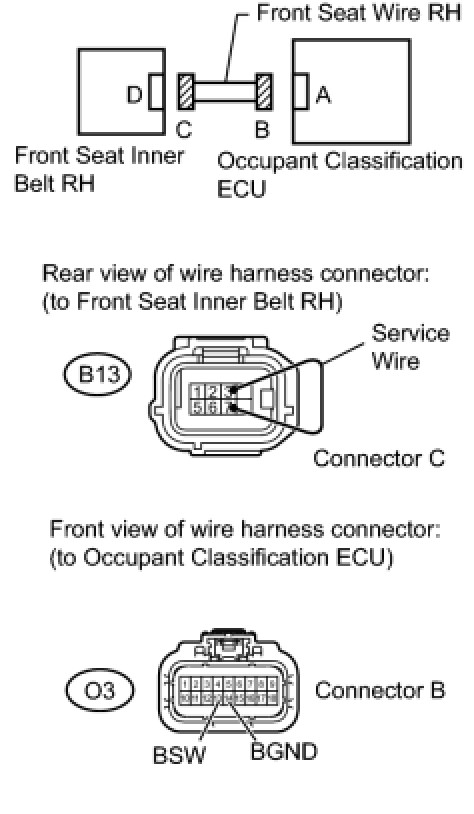

4. CHECK FRONT SEAT WIRE RH

(a) Connect the negative (-) terminal cable to the battery.





(b) Turn the ignition switch ON.

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(d) Turn the ignition switch OFF.

(e) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(f) Using a service wire, connect terminals 3 and 7 of connector C.

NOTICE:
Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

(g) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(h) Disconnect the service wire from connector C.

(i) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE FRONT SEAT WIRE RH
OK -- Continue to next step.

5. CHECK FOR DTC

(a) Connect the connectors to the occupant classification ECU and the front seat inner belt assembly RH.

(b) Connect the negative (-) terminal cable to the battery.

(c) Turn the ignition switch ON.

(d) Clear the DTCs stored in the occupant classification ECU Reading and Clearing Diagnostic Trouble Codes.

(e) Clear the DTCs stored in the center airbag sensor Service and Repair

(f) Turn the ignition switch OFF.

(g) Turn the ignition switch ON.

(h) Check for the DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1771 is not output.

HINT
Codes other than B1771 may be output at this time, but they are not related to this check.

OK -- USE SIMULATION METHOD TO CHECK Initial Inspection and Diagnostic Overview
NG -- Continue to next step.

6. REPLACE FRONT SEAT INNER BELT ASSEMBLY RH (PASSENGER SIDE BUCKLE SWITCH)

(a) Turn the ignition switch OFF.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Replace the front seat inner belt RH Removal.

HINT
Perform the inspection using parts from a normal vehicle if possible.

(d) Connect the negative (-) terminal cable to the battery.

(e) Turn the ignition switch ON.

(f) Clear the DTCs stored in the occupant classification ECU Reading and Clearing Diagnostic Trouble Codes.

(g) Clear the DTCs stored in the center airbag sensor Reading and Clearing Diagnostic Trouble Codes

(h) Turn the ignition switch OFF.

(i) Turn the ignition switch ON.

(j) Check for the DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1771 is not output.

HINT
Codes other than B1771 may be output at this time, but they are not related to this check.

OK -- END
NG -- Continue to next step.

7. REPLACE OCCUPANT CLASSIFICATION ECU

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch ON.

(c) Using the Techstream, save the ECU data from the ECU which has been installed on the vehicle Programming and Relearning.

(d) Turn the ignition switch OFF.

(e) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(f) Replace the occupant classification ECU Disassembly.

(g) Connect the negative (-) terminal cable to the battery.

(h) Turn the ignition switch ON.

(i) Using the Techstream, load the previous ECU data stored into the new ECU Programming and Relearning.

(j) Turn the Ignition switch OFF.

(k) Turn the ignition switch ON.

(l) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.

HINT
If DTC is not cleared at this time, past DTC will remain.

NEXT -- Continue to next step.

8. PERFORM SENSITIVITY CHECK

(a) Perform the sensitivity check Programming and Relearning.

NEXT -- END
