B15BA

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/ Navigation System for HDD): B15BA: XM Tuner Malfunction
B15BA - XM Tuner Malfunction

DESCRIPTION

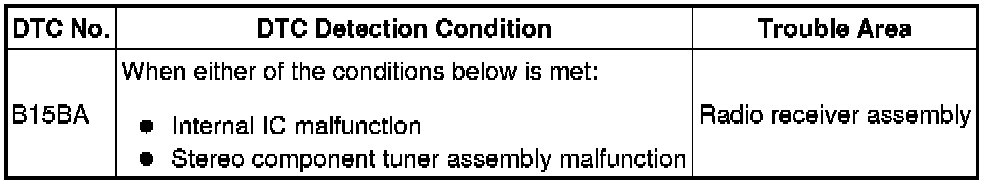

This DTC is stored when a malfunction occurs in the radio receiver assembly.





INSEPCTION PROCEDURE

NOTICE:
After replacing the radio receiver assembly of vehicles subscribed to pay-type satellite radio broadcasts, registration of the XM radio ID is necessary.

PROCEDURE

1. CHECK DTC

(a) Clear the DTC Audio and Visual System (w/ Navigation System for HDD).

(b) Recheck for DTC and check if the same trouble occurs again.

OK:

No DTC is output.

NG -- REPLACE RADIO RECEIVER ASSEMBLY Service and Repair

OK -- USE SIMULATION METHOD TO CHECK How to Proceed with Troubleshooting
