Inspection

AA80F AUTOMATIC TRANSMISSION: FLOOR SHIFT ASSEMBLY: INSPECTION

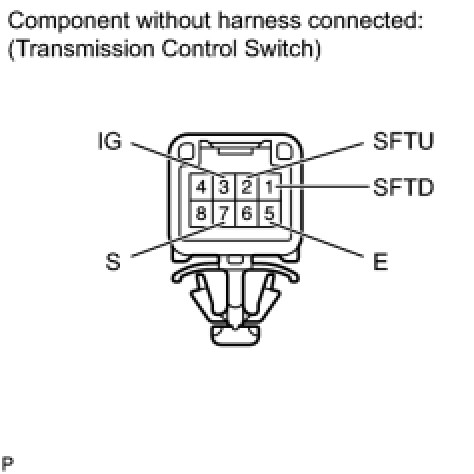

1. INSPECT TRANSMISSION CONTROL SWITCH

(a) Measure the resistance according to the value(s) in the table below.

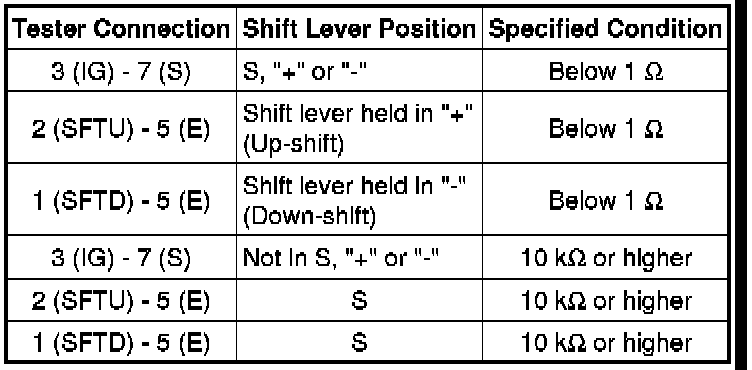

Standard Resistance:





(b) If the result is not as specified, replace the transmission floor shift assembly.
