Control Valve Assembly (For Front Side)

SUSPENSION CONTROL: CONTROL VALVE ASSEMBLY (for Front Side): INSPECTION

1. INSPECT NO. 1 HEIGHT CONTROL VALVE SUB-ASSEMBLY

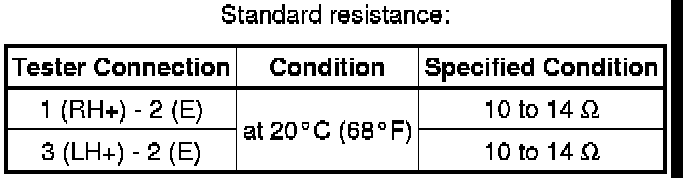

(a) Measure the resistance according to the value(s) in the table.

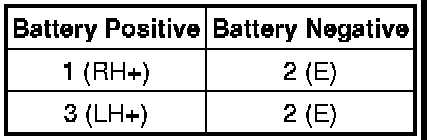

(b) Check the operating sound of the height control valve when battery voltage is applied to the terminals.









OK:

It makes an operating sound.
