On-Vehicle Inspection

SUSPENSION: REAR UPPER ARM: ON-VEHICLE INSPECTION

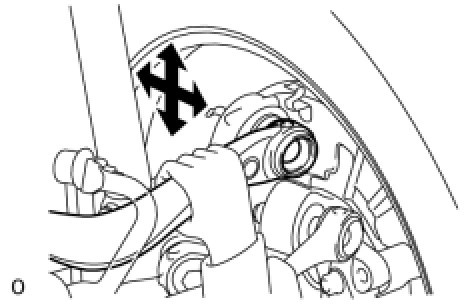

1. INSPECT REAR UPPER NO. 1 CONTROL ARM BALL JOINT RATTLE





(a) Jack up the vehicle.

(b) Shake the suspension arm by hand and check for rattle.

Standard rattle:

No rattle is felt

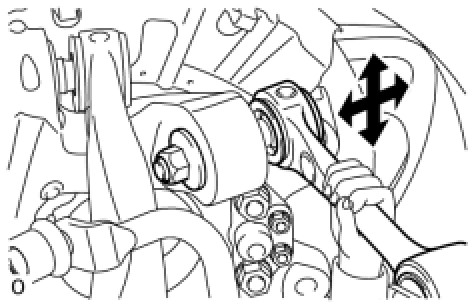

2. INSPECT REAR UPPER NO. 2 CONTROL ARM BALL JOINT RATTLE





(a) Jack up the vehicle.

(b) Shake the suspension arm by hand and check for rattle.

Standard rattle:

No rattle is felt
