On-Vehicle Inspection

SUSPENSION: FRONT LOWER SUSPENSION ARM (for AWD): ON-VEHICLE INSPECTION

1. INSPECT FRONT LOWER SUSPENSION ARM BALL JOINT RATTLE

(a) Jack up the vehicle.

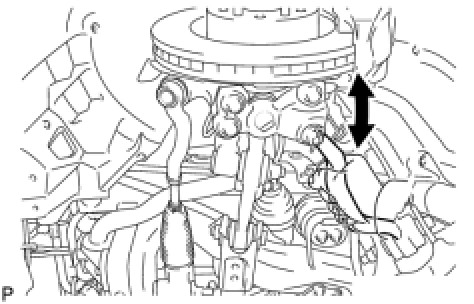

(b) Move the front No. 2 suspension lower arm up and down by hand, and check for rattle.





OK:

No rattle.
