Home >> Lexus >> 2010 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Locations >> Wire and Wire In Seat [5-Seater w/ Power Seat]

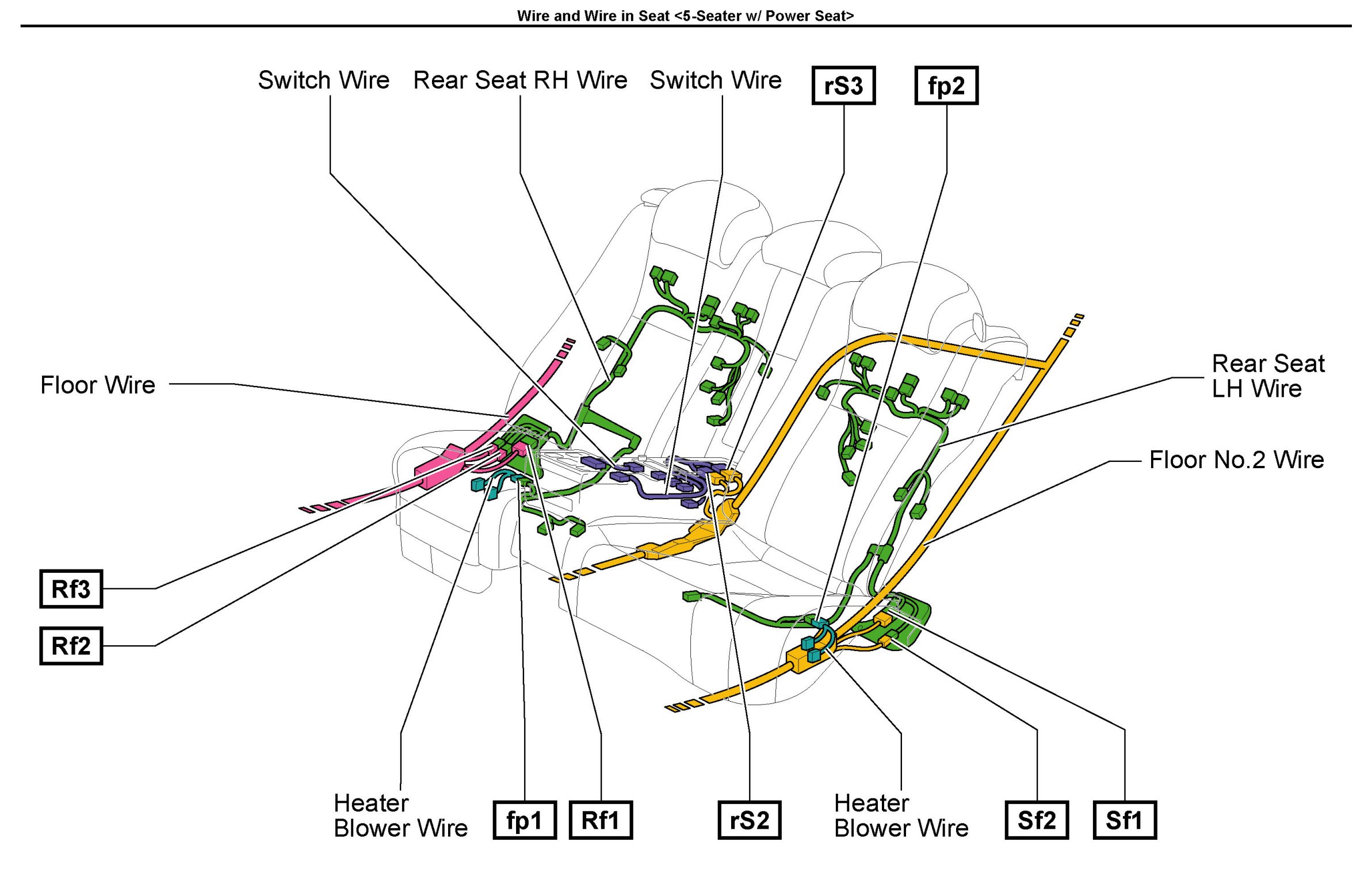

Wire and Wire In Seat [5-Seater w/ Power Seat]

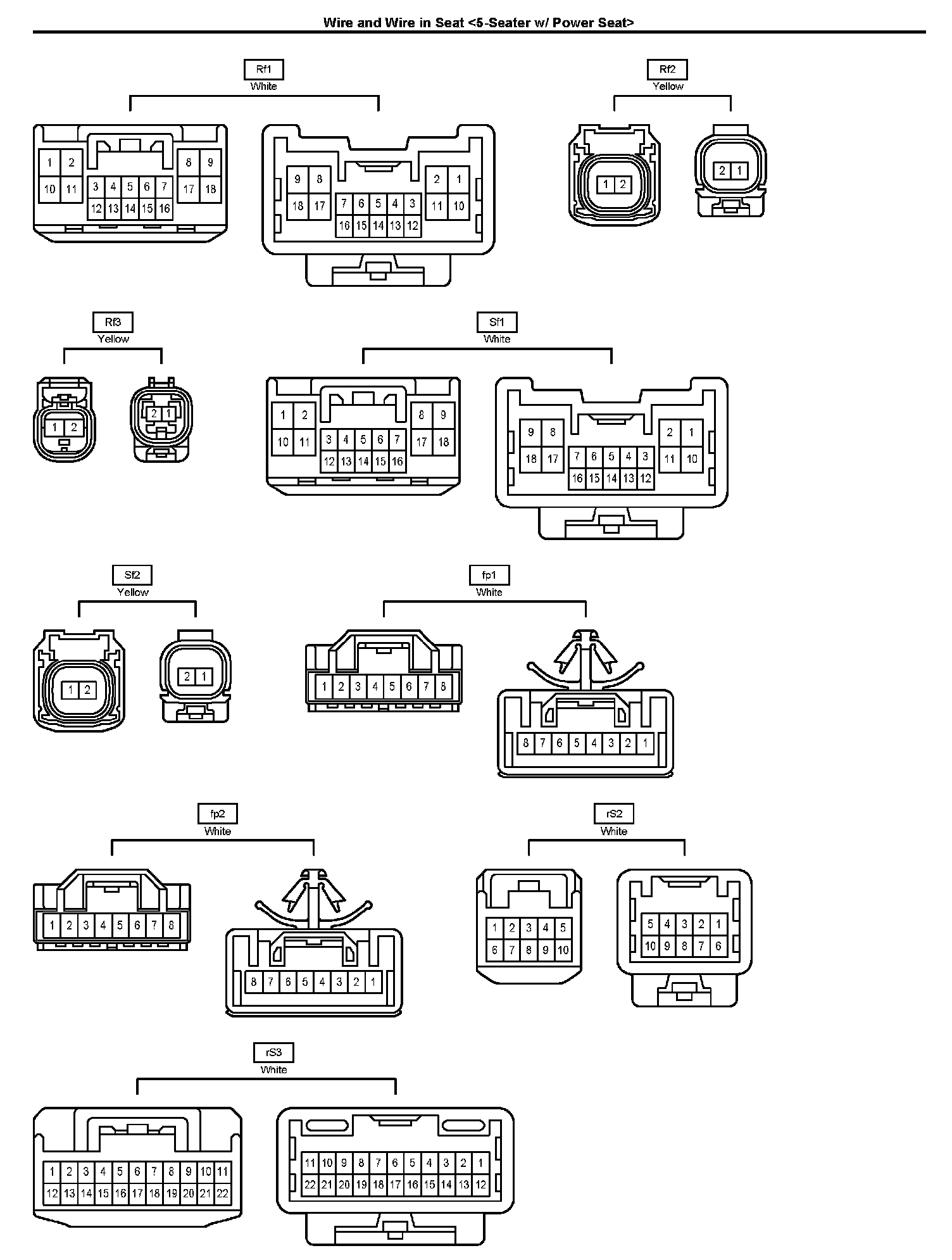

fp1-Sf2:




fp1-Sf2:
