Removal

AIR CONDITIONING: AMBIENT TEMPERATURE SENSOR: REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System (for HDD):
* After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

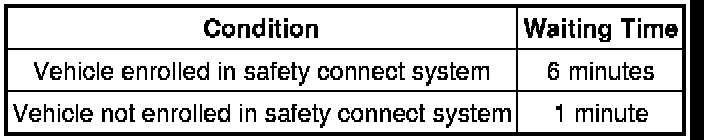

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.
3. REMOVE FRONT BUMPER COVER

(a) Remove the front bumper cover Removal.

4. REMOVE AMBIENT TEMPERATURE SENSOR





(a) Disconnect the connector.

(b) Detach the clamp and remove the sensor.
