Removal

SEAT BELT: SHOULDER BELT ANCHORAGE SWITCH: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.
1. REMOVE COWL TOP VENTILATOR LOUVER RH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System (for HDD):
* After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

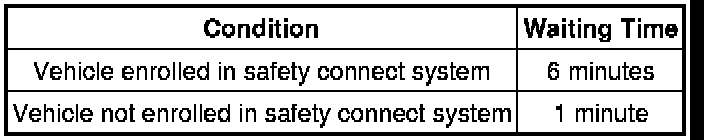

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.
3. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH Removal

4. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY Removal

5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Removal

6. REMOVE HEIGHT ADJUSTABLE ANCHOR SWITCH





(a) Using a screwdriver, detach the 2 claws and remove the switch.

HINT
Tape the screwdriver tip before use.
