Installation

SUPPLEMENTAL RESTRAINT SYSTEM: FRONT PASSENGER AIRBAG ASSEMBLY: INSTALLATION

1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY

(a) Attach the 5 hooks (A).





(b) Attach the 5 hooks (B) and install the front passenger airbag on the instrument panel.

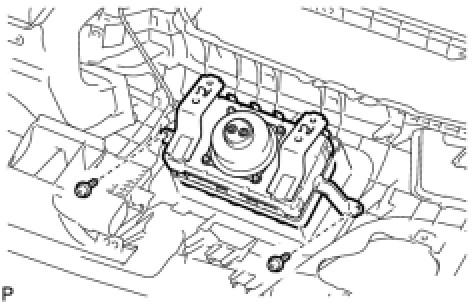

(c) Install the 2 screws.

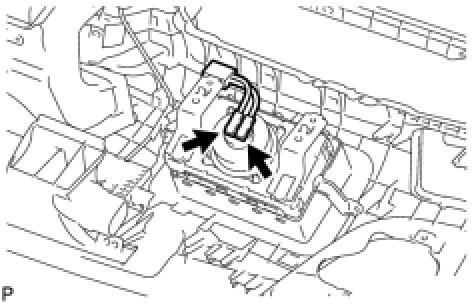

(d) Connect the 2 connectors and install the instrument panel wire assembly to the front passenger airbag.





NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

2. INSTALL NO. 3 HEATER TO REGISTER DUCT Reassembly

3. INSTALL DEFROSTER NOZZLE ASSEMBLY Reassembly

4. INSTALL SIDE NO. 1 DEFROSTER NOZZLE DUCT Reassembly

5. INSTALL SIDE NO. 2 DEFROSTER NOZZLE DUCT Reassembly

6. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Install the instrument panel safety pad sub-assembly Installation.

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

CAUTION:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

8. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
