Removal

SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTICE:
* w/ Navigation System (for HDD):
* After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.
2. REMOVE ROOF HEADLINING ASSEMBLY

(a) Remove the roof headlining assembly Removal.

3. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (for Standard Body)

(a) Remove the clip.

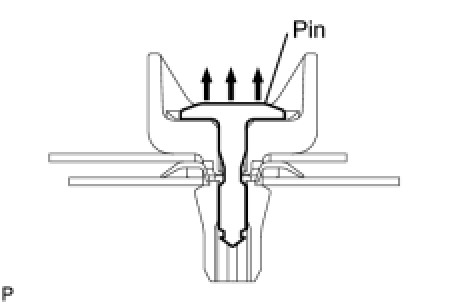

(1) Using a clip remover, remove the pin.

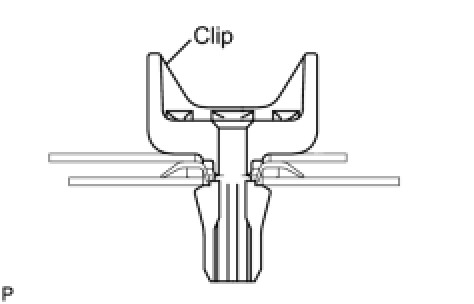

(2) Remove the clip shown in the illustration.





(b) Remove the spacer.





(1) Remove the spacer shown in the illustration.

(c) Disconnect the connector.

NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(d) Remove the 8 bolts and curtain shield airbag.





4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (for Long Body)

(a) Remove the clip.





(1) Using a clip remover, remove the pin.

(2) Remove the clip shown in the illustration.





(b) Remove the spacer shown in the illustration.





(c) Disconnect the connector.

NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(d) Remove the 8 bolts and curtain shield airbag.
