Installation

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

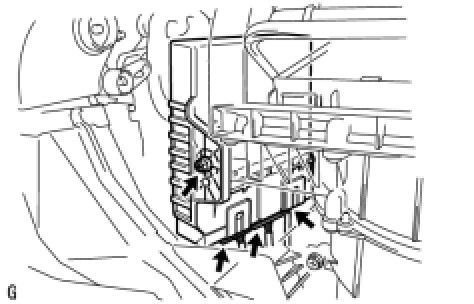

(a) Install the amplifier with the screw.

(b) Connect the 3 connectors.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

4. INSTALL INSTRUMENT PANEL LOWER Installation

5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

6. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING Installation

7. INSTALL INSTRUMENT SIDE PANEL RH Installation

8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

10. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

11. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
