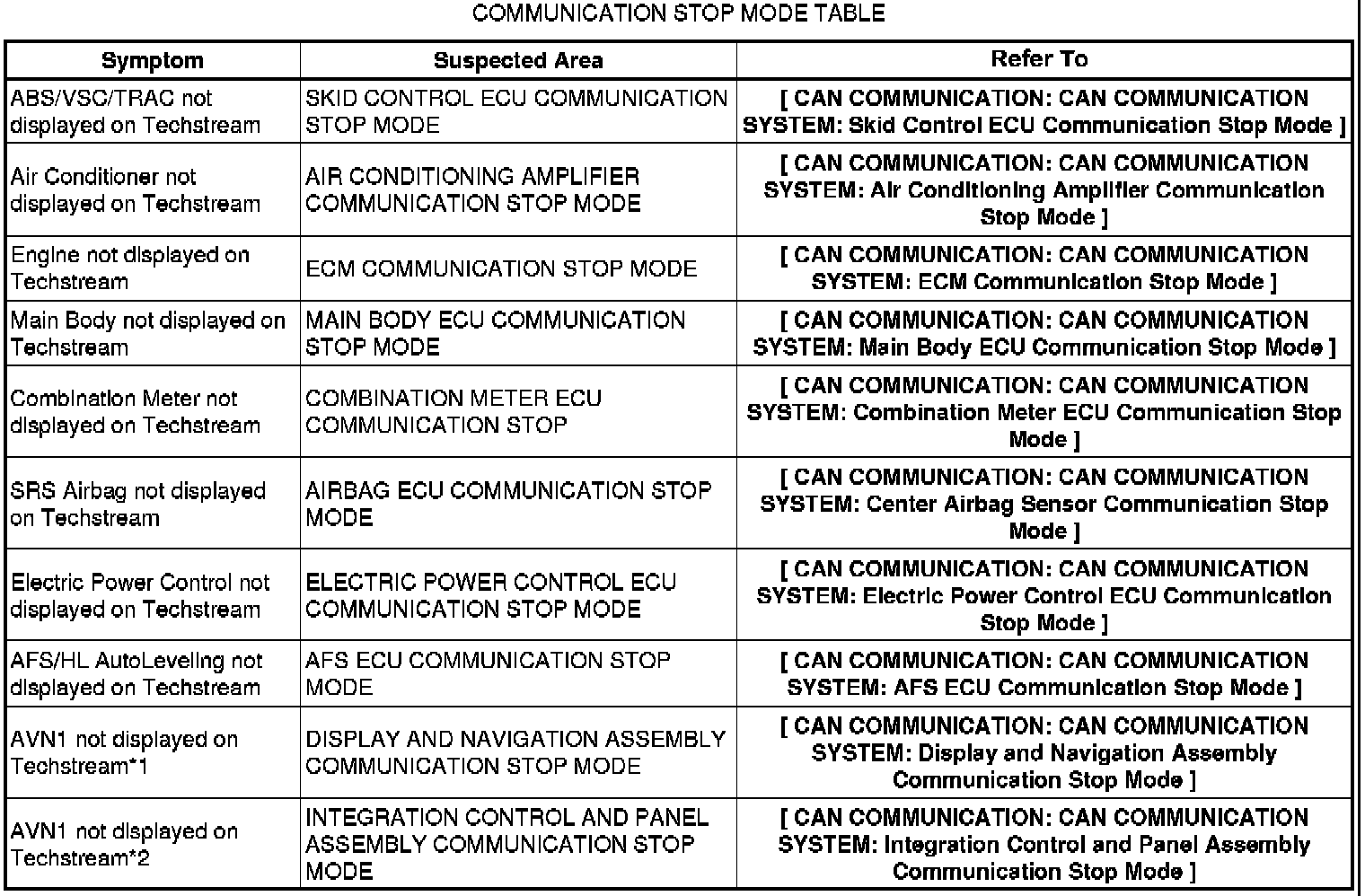

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE
HINT
*
*1: w/ Multi-display
*
*2: w/o Multi-display
