Vanity Light (For Front)

LIGHTING: VANITY LIGHT (for Front): INSPECTION

1. INSPECT VISOR ASSEMBLY RH

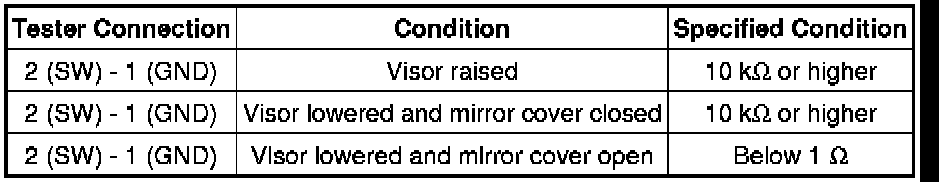

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





(b) If the result is not as specified, replace the visor assembly RH.
