Installation

METER: COMBINATION METER: INSTALLATION

1. INSTALL COMBINATION METER ASSEMBLY

(a) Connect the connector.





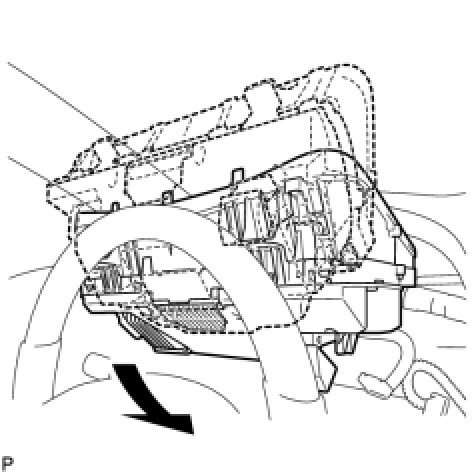

(b) Install the combination meter with the 4 screws.





2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

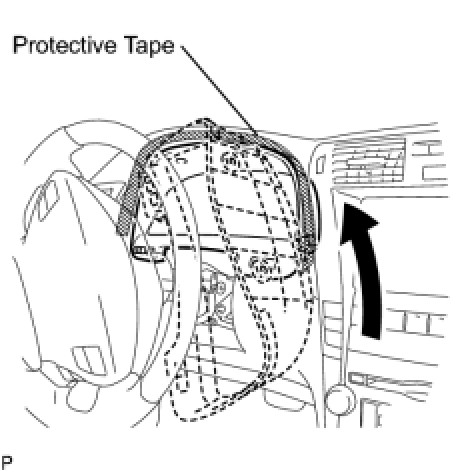

(a) Apply protective tape to the area shown in the illustration.





(b) Connect the connector.

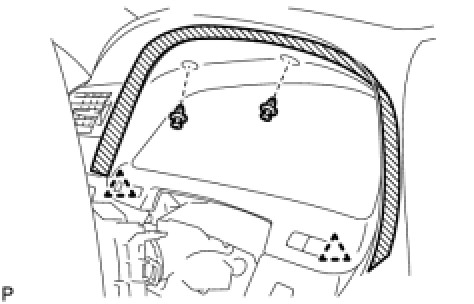

(c) Attach the 2 clips to install the finish panel.

(d) Install the 2 clips.

3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY Installation

4. INSTALL STEERING COLUMN COVER Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter Programming and Relearning.

6. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

7. PERFORM INITIALIZATION

(a) Perform initialization Testing and Inspection.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
