Home >> Lexus >> 2010 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Hose/Line HVAC >> Service and Repair

Hose/Line HVAC: Service and Repair

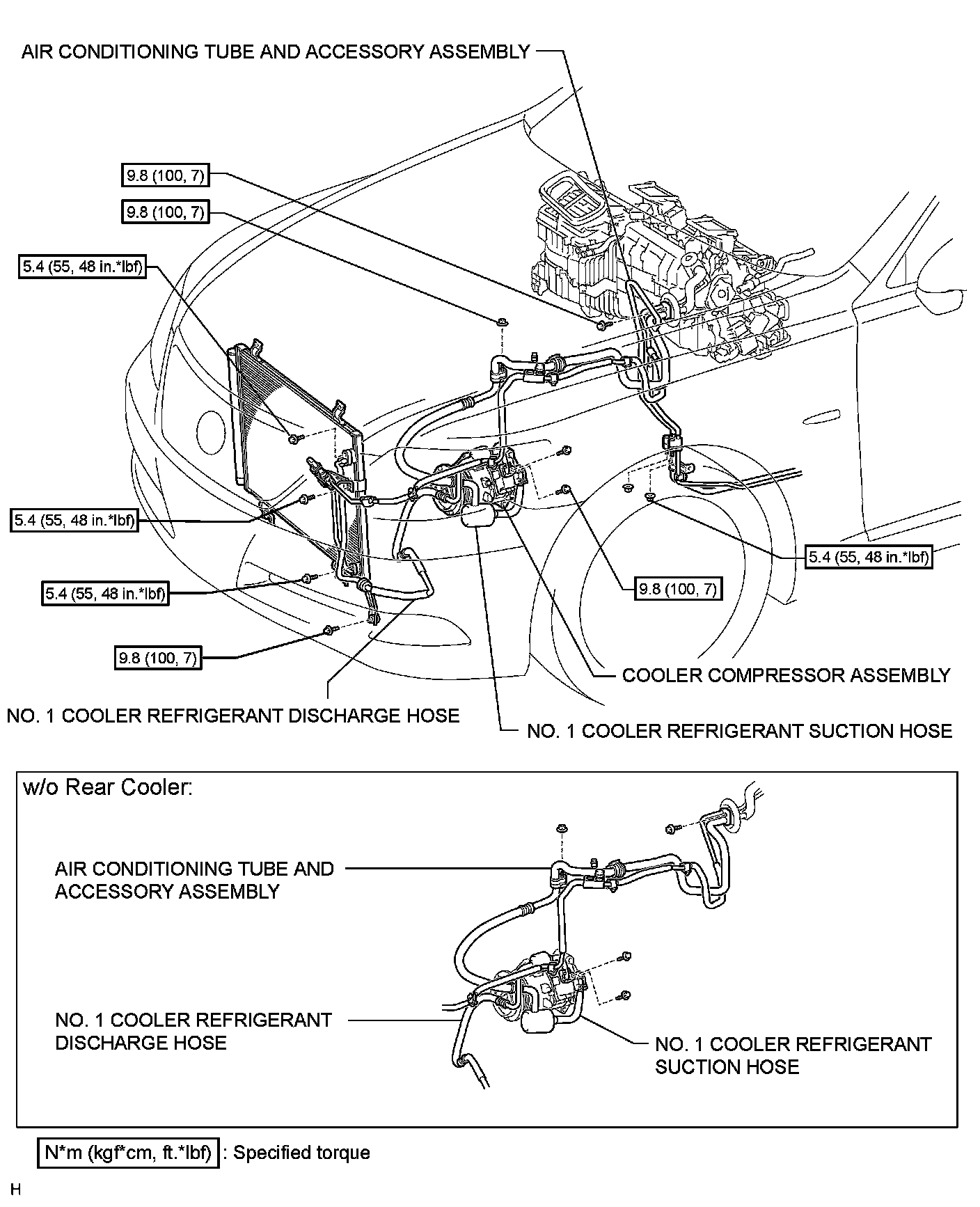

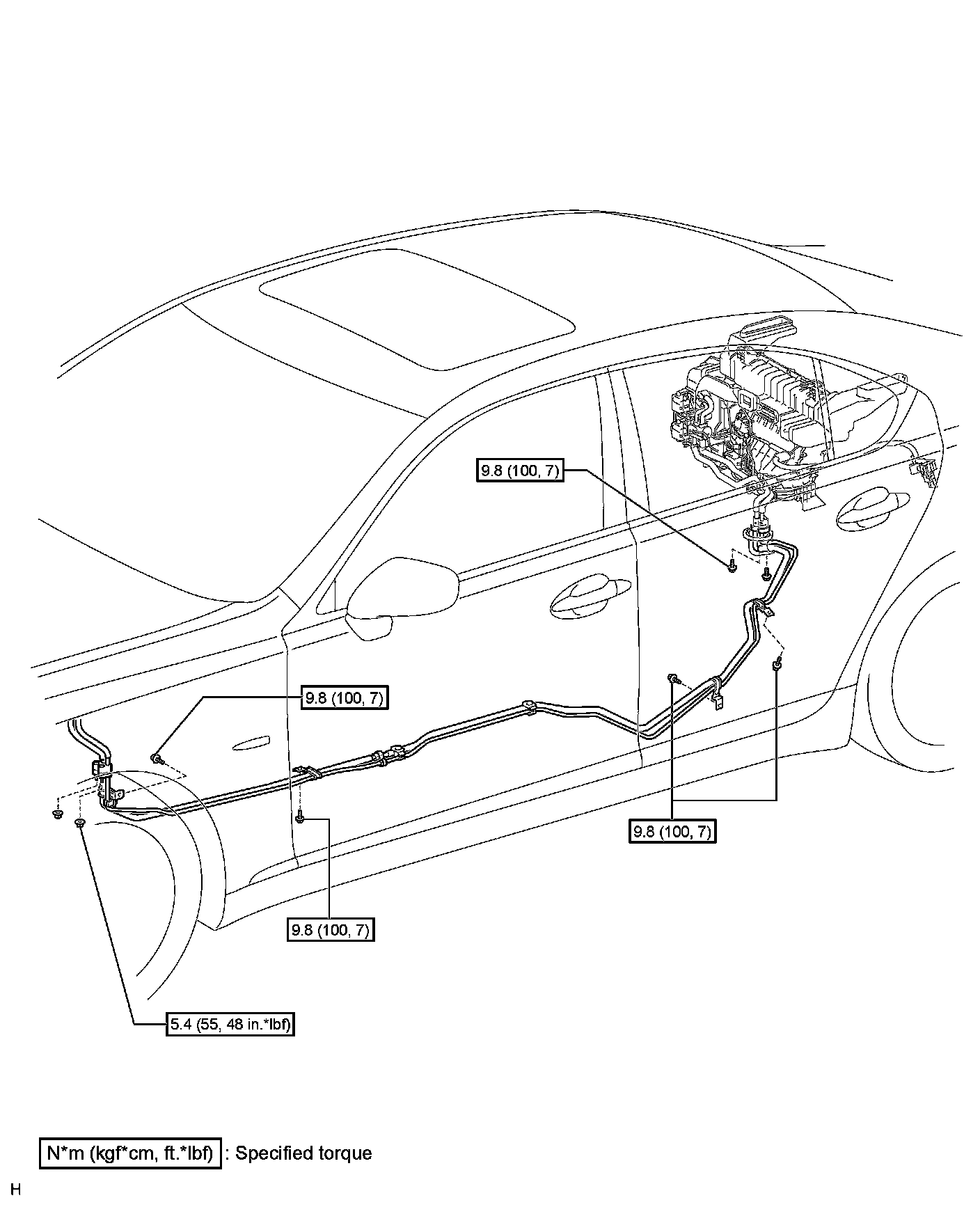

AIR CONDITIONING: REFRIGERANT LINE: COMPONENTS
